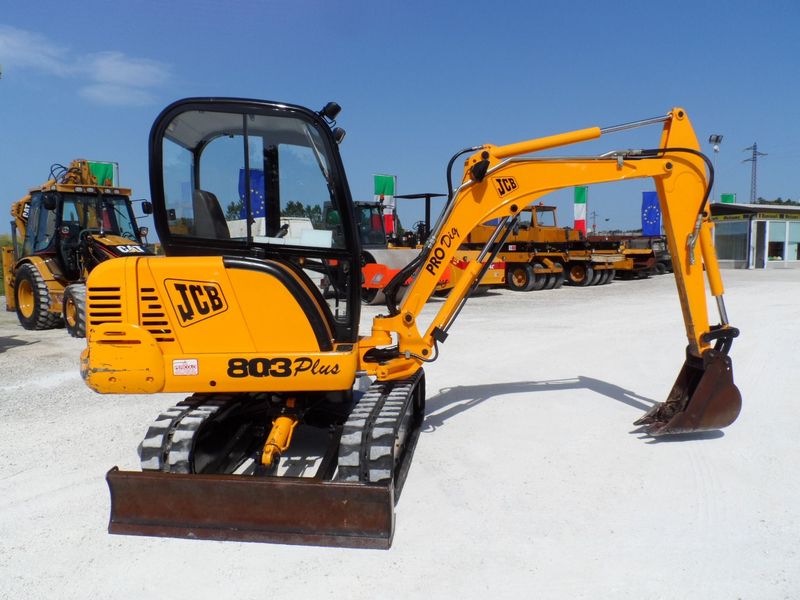

JCB 803 Plus
Browse All JCB or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 14.23 ft in (4335 mm) |
| Shipping Height Of Unit | 7.98 ft in (2430 mm) |
| Max Cutting Height | 14.31 ft in (4361 mm) |
| Max Loading Height | 10.51 ft in (3202 mm) |
| Max Reach Along Ground | 15.6 ft in (4753 mm) |
| Max Digging Depth | 9.9 ft in (3015 mm) |
| Boom/Stick Option (Hex) 1 | boom w/ arm 1400mm |
Dimensions
| Width To Outside Of Tracks | 4.76 ft in (1450 mm) |
| Length Of Track On Ground | 5.21 ft in (1585 mm) |
| Height To Top Of Cab | 7.98 ft in (2430 mm) |
| Tail Swing Radius | 4.76 ft in (1449 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Number Of Track Rollers Per Side | 4 |
| Ground Pressure | 4.7 psi (32.34 kPa) |
| Max Travel Speed | 2.24 mph (3.6 km/h) |
Engine
| Engine Model | 403-15 |
| Gross Power | 27.8 hp (20.8 kw) |
| Net Power | 26.6 hp (19.8 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 91.3 cu in (1.5 L) |
| Max Torque | 67.9 lb ft (92 Nm) |
| Torque Measured @ | 2000 rpm |
Operational
| Operating Weight | 14793.1 lb (6710 kg) |
| Fuel Capacity | 12.7 gal (48 L) |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 18.5 gal (70 L) |
| Engine Oil Capacity | 1.4 gal (5 L) |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 2755.8 psi (19000 kPa) |
| Hydraulic Pump Flow Capacity | 7.7 gal/min (29 L/min) |
Swing Mechanism
| Swing Speed | 9.5 rpm |
