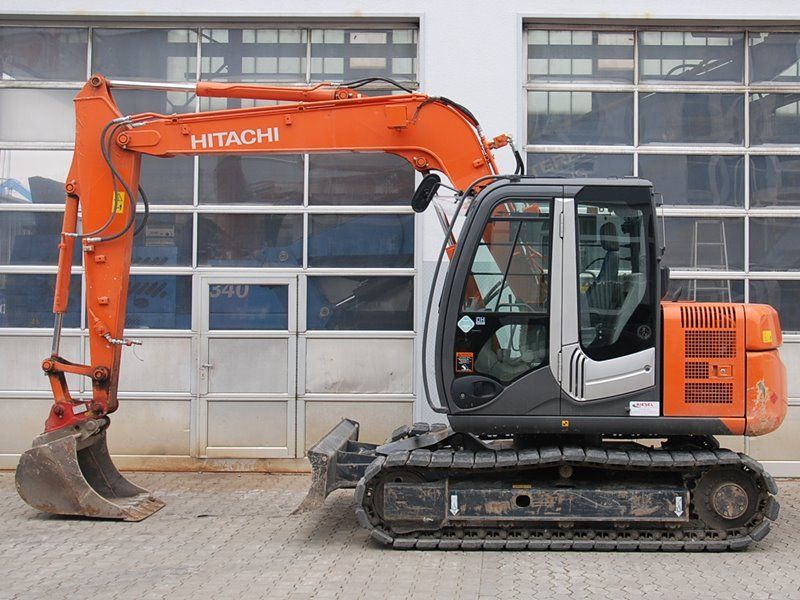

Hitachi ZX70LC
Browse All Hitachi or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 19.95 ft in (6080 mm) |
| Shipping Height Of Unit | 8.54 ft in (2600 mm) |
| Max Cutting Height | 23.46 ft in (7150 mm) |
| Max Loading Height | 16.61 ft in (5060 mm) |
| Max Reach Along Ground | 20.25 ft in (6170 mm) |
| Max Vertical Wall Digging Depth | 12.24 ft in (3730 mm) |
| Max Digging Depth | 13.69 ft in (4170 mm) |
| Boom/Stick Option (Hex) 1 | Boom 12ft 2in (3720mm)/Stick 5ft 4in(1620mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 20.08 ft in (6120 mm) |
| Shipping Height Of Unit | 9.45 ft in (2880 mm) |
| Max Cutting Height | 24.78 ft in (7550 mm) |
| Max Loading Height | 17.89 ft in (5450 mm) |
| Max Reach Along Ground | 21.89 ft in (6670 mm) |
| Max Digging Depth | 15.33 ft in (4670 mm) |
| Max Vertical Wall Digging Depth | 14.05 ft in (4280 mm) |
| Boom/Stick Option (Hex) 2 | Boom 12ft 2in (3720mm)/Stick 6ft 11in (2120mm) |
Dimensions
| Width To Outside Of Tracks | 7.62 ft in (2320 mm) |
| Length Of Track On Ground | 7.52 ft in (2290 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Height To Top Of Cab | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 5.75 ft in (1750 mm) |
| Removal Counterweight Clearance | 2.5 ft in (760 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Track Gauge | 6.14 ft in (1870 mm) |
| Ground Pressure | 4.36 psi (30 kPa) |
| Number Of Shoes Per Side | 40 |
| Max Travel Speed | 3.1 mph (5 km/h) |
| Number Of Track Rollers Per Side | 5 |
| Number Of Carrier Rollers Per Side | 1 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | CC-4JG1 |
| Net Power | 52 hp (39 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 186.7 cu in (3.1 L) |
| Max Torque | 141.7 lb ft (192 Nm) |
| Torque Measured @ | 1800 rpm |
Operational
| Operating Weight | 16248.1 lb (7370 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Cooling System Fluid Capacity | 2.6 gal (9.5 L) |
| Hydraulic System Fluid Capacity | 26.5 gal (100 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 3.2 gal (12 L) |
| Hydraulic System Relief Valve Pressure | 4554.2 psi (31400 kPa) |
| Hydraulic Pump Flow Capacity | 47.2 gal/min (178.5 L/min) |
Swing Mechanism
| Swing Speed | 11.3 rpm |
