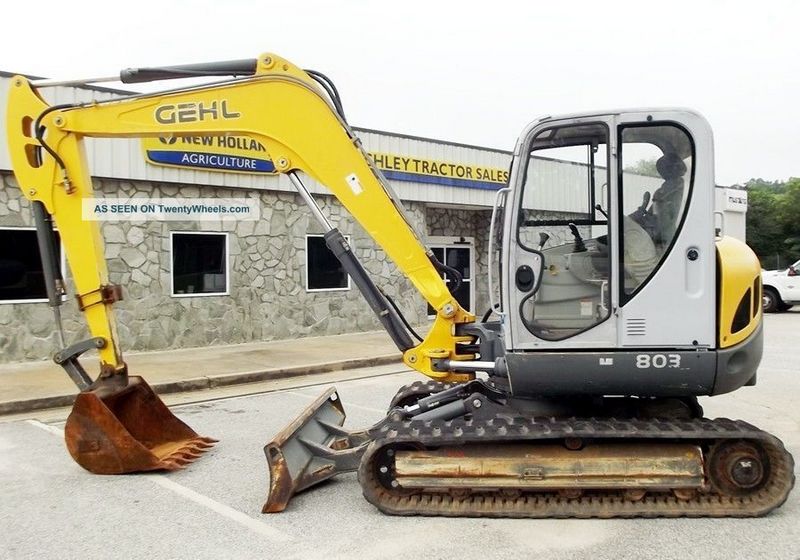

Gehl 803
Browse All Gehl or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 21.56 ft in (6570 mm) |
| Max Cutting Height | 22.91 ft in (6980 mm) |
| Max Loading Height | 15.88 ft in (4840 mm) |
| Max Reach Along Ground | 23.53 ft in (7170 mm) |
| Max Vertical Wall Digging Depth | 12.05 ft in (3670 mm) |
| Max Digging Depth | 14.08 ft in (4290 mm) |
| Boom/Stick Option (Hex) 1 | Standard arm 6'1" (1850mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 23.53 ft in (7170 mm) |
| Max Loading Height | 16.51 ft in (5030 mm) |
| Max Reach Along Ground | 24.41 ft in (7440 mm) |
| Max Digging Depth | 15.03 ft in (4580 mm) |
| Max Vertical Wall Digging Depth | 13.03 ft in (3970 mm) |
| Boom/Stick Option (Hex) 2 | Long arm 7'1" (2150mm) |
Dimensions
| Length Of Track On Ground | 7.34 ft in (2235 mm) |
| Ground Clearance | 0.96 ft in (290 mm) |
| Height To Top Of Cab | 8.9 ft in (2710 mm) |
| Tail Swing Radius | 5.09 ft in (1550 mm) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Max Travel Speed | 3.2 mph (5.15 km/h) |
| Number Of Track Rollers Per Side | 5 |
| Ground Pressure | 5.1 psi (35.17 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2291 |
| Engine Model | Yanmar 4TNV98-VNS, A TIER II |
| Gross Power | 69 hp (51.5 kw) |
| Net Power | 57 hp (42.6 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 202 cu in (3.4 L) |
Operational
| Operating Weight | 17548 lb (7959.7 kg) |
| Fuel Capacity | 24.6 gal (93 L) |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 26.2 gal (99 L) |
| Alternator Supplied Amperage | 88 amps |
| Hydraulic System Relief Valve Pressure | 4351 psi (29999.1 kPa) |
| Hydraulic Pump Flow Capacity | 63 gal/min (238.5 L/min) |
Swing Mechanism
| Swing Speed | 9.2 rpm |
Buckets
| Reference Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.5 yd3 (0.4 m3) |
