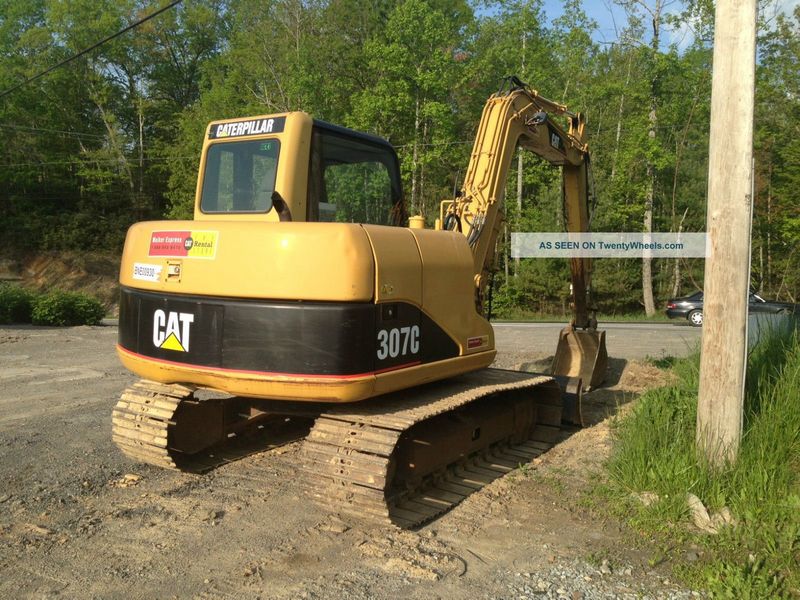

Caterpillar 307C
Browse All Caterpillar or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Height Of Unit | 8.63 ft in (2630 mm) |
| Max Cutting Height | 23.92 ft in (7290 mm) |
| Max Loading Height | 16.9 ft in (5150 mm) |
| Max Reach Along Ground | 20.35 ft in (6200 mm) |
| Max Vertical Wall Digging Depth | 11.95 ft in (3640 mm) |
| Max Digging Depth | 13.49 ft in (4110 mm) |
| Boom/Stick Option (Hex) 1 | One piece boom/Stick 5'6" (1665mm) |
Boom/Stick Option (Hex) 2
| Shipping Height Of Unit | 9.13 ft in (2780 mm) |
| Max Cutting Height | 25.23 ft in (7690 mm) |
| Max Loading Height | 18.25 ft in (5560 mm) |
| Max Reach Along Ground | 22.05 ft in (6720 mm) |
| Max Digging Depth | 15.26 ft in (4650 mm) |
| Max Vertical Wall Digging Depth | 13.65 ft in (4160 mm) |
| Boom/Stick Option (Hex) 2 | One piece boom/Stick 7'3" (2210mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 24.94 ft in (7600 mm) |
| Max Loading Height | 17.92 ft in (5460 mm) |
| Max Reach Along Ground | 21.07 ft in (6420 mm) |
| Max Vertical Wall Digging Depth | 11.91 ft in (3630 mm) |
| Max Digging Depth | 13.42 ft in (4090 mm) |
| Boom/Stick Option (Hex) 3 | Parallel offset boom (no offset)/Stick 5'6" (1665mm) |
Boom/Stick Option (Hex) 4
| Max Cutting Height | 23.5 ft in (7160 mm) |
| Max Loading Height | 180.55 ft in (55030 mm) |
| Max Reach Along Ground | 19.39 ft in (5910 mm) |
| Max Digging Depth | 11.78 ft in (3590 mm) |
| Max Vertical Wall Dig Depth | 10.27 ft in (3130 mm) |
| Boom/Stick Option (Hex) 4 | Parallel offset boom (fully offset left)/Stick 5'6" (1665mm) |
Boom/Stick Option (Hex) 5
| Max Cutting Height | 23.69 ft in (7220 mm) |
| Max Loading Height | 16.7 ft in (5090 mm) |
| Max Reach Along Ground | 19.62 ft in (5980 mm) |
| Max Digging Depth | 12.01 ft in (3660 mm) |
| Boom/Stick Option (Hex) 5 | Parallel offset boom (fully offset right)/Stick 5'6" (1665mm) |
| Max Vertical Wall Dig Depth | 10.5 ft in (3200 mm) |
Dimensions
| Width To Outside Of Tracks | 7.52 ft in (2290 mm) |
| Length Of Track On Ground | 6.96 ft in (2120 mm) |
| Ground Clearance | 1.25 ft in (380 mm) |
| Height To Top Of Cab | 8.63 ft in (2630 mm) |
| Tail Swing Radius | 5.75 ft in (1750 mm) |
| Track Shoe Width | 1.5 ft in (0.46 m) |
| Width - Upper Structure | 7.51 ft in (2.29 m) |
| Length - Center Of Rollers | 6.96 ft |
| Maximum Cutting Height - Standard Stick | 23.9 ft in (7.29 m) |
| Maximum Digging Depth - Long Stick | 15.26 ft in (4.66 m) |
| Maximum Digging Depth - Standard Stick | 13.48 ft in (4.11 m) |
| Maximum Dump Height - Long Stick | 18.24 ft in (5.56 m) |
| Maximum Dump Height - Standard Stick | 16.9 ft in (5.16 m) |
| Maximum Reach - Ground Level - Long Stick | 22.05 ft in (6.73 m) |
| Maximum Reach - Ground Level - Standard Stick | 20.34 ft in (6.2 m) |
| Maximum Vertical Dig Depth - Long Stick | 13.6 ft in (4.15 m) |
| Maximum Vertical Dig Depth - Standard Stick | 11.9 ft in (3.63 m) |
| Shipping Height | 8.64 ft in (2630.43 mm) |
| Center Ground Clearance | 1.25 ft in (0.39 m) |
| Maximum Cutting Height - Long Stick | 25.2 ft in (7.69 m) |
| Shipping Length | 19.91 ft in (6068.57 mm) |
| Height - Over Cab | 8.64 ft in (2.64 m) |
| Transport Width | 90.16 ft in (27480.77 mm) |
| Stick Length - Long Stick | 7.25 ft in (2.21 m) |
| Stick Length - Standard Stick | 5.46 ft in (1.67 m) |
| Swing Radius - Rear | 5.74 ft in (1.75 m) |
Undercarriage
| Shoe Size | 17.72 in (450 mm) |
| Track Gauge | 5.75 ft in (1750 mm) |
| Max Travel Speed | 3.3 mph (5.3 km/h) |
| Drawbar Pull | 12810 lb (56.99 kN) |
| Ground Pressure | 4.35 psi (30 kPa) |
Swing System
| Machine Swing Speed | 11 rpm |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2251 |
| Engine Model | C 4M40E1 |
| Gross Power | 55 hp (41.1 kw) |
| Net Power | 54 hp (40.3 kw) |
| Displacement | 173.4 cu in (2.9 L) |
| Engine Model | Mitsubishi 4M40E1 |
Operational
| Operating Weight | 15895 lb (7210 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Cooling System Fluid Capacity | 4.1 gal (15.5 L) |
| Hydraulic System Fluid Capacity | 24.9 gal (94 L) |
| Engine Oil Capacity | 3 gal (11.2 L) |
| Swing Drive Fluid Capacity | 0.4 gal (1.5 L) |
| Alternator Supplied Amperage | 35 amps |
| Hydraulic System Relief Valve Pressure | 4550 psi (31371.2 kPa) |
| Hydraulic Pump Flow Capacity | 17 gal/min (64.4 L/min) |
Swing Mechanism
| Swing Torque | 10440 lb ft (14150 Nm) |
| Swing Speed | 11 rpm |
Weights
| Operating Weight | 15895 lb (7209.9 kg) |
| Operating Weight - With Cab | 15895 lb (7209.9 kg) |
Buckets
| Reference Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 0.5 yd3 (0.4 m3) |
Hydraulic System
| Operating Pressure - Swing | 2840 psi |
| Operating Pressure - Equipment | 3980 psi |
| Operating Pressure - Travel | 4550 psi |
| Digging Force - Stick - Standard | 7843.2 lb (3557.6 kg) |
| Digging Force - Stick - Long | 6895.8 lb (3127.9 kg) |
| Digging Force - Bucket | 9830 lb (4458.9 kg) |
Service Refill Capacities
| Cooling System | 4 gal (15.2 L) |
| Fuel Tank | 35.7 gal (135.2 L) |
| Hydraulic Tank | 15 gal (56.8 L) |
| Hydraulic System | 24.8 gal (93.9 L) |
| Engine Oil | 2.9 gal (11 L) |
Engine Dimensions
| Bore | 3.7 in (94 mm) |
| Stroke | 4 in (101.6 mm) |
| Displacement | 173 cu in (2.9 L) |
Msc Comments
| Msc Spec Date | 10/05 |
Travel System
| Travel Speed - High | 3.3 mph (5.4 km/h) |
