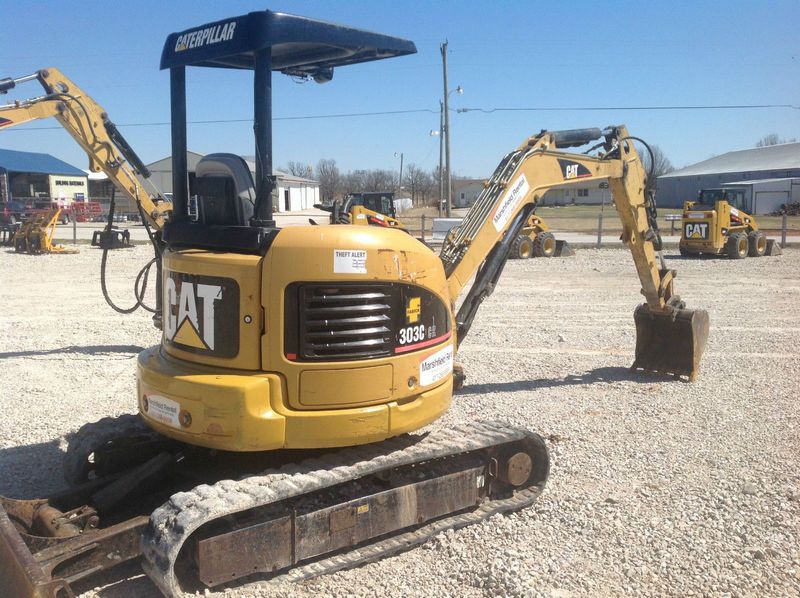

Caterpillar 304C CR
Browse All Caterpillar or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 17 ft in (5170 mm) |
| Shipping Height Of Unit | 8.33 ft in (2550 mm) |
| Max Cutting Height | 17.33 ft in (5280 mm) |
| Max Loading Height | 12.08 ft in (3690 mm) |
| Max Reach Along Ground | 17.93 ft in (5460 mm) |
| Max Vertical Wall Digging Depth | 8 ft in (2440 mm) |
| Max Digging Depth | 10.83 ft in (3300 mm) |
| Boom/Stick Option (Hex) 1 | Standard Stick |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 17.33 ft in (5290 mm) |
| Shipping Height Of Unit | 8.33 ft in (2550 mm) |
| Max Cutting Height | 18 ft in (5480 mm) |
| Max Loading Height | 12.83 ft in (3900 mm) |
| Max Reach Along Ground | 19.18 ft in (5830 mm) |
| Max Digging Depth | 12.08 ft in (3690 mm) |
| Max Vertical Wall Digging Depth | 9.08 ft in (3690 mm) |
| Boom/Stick Option (Hex) 2 | Long Stick |
Dimensions
| Width To Outside Of Tracks | 6.5 ft in (1980 mm) |
| Length Of Track On Ground | 8.5 ft in (2580 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Height To Top Of Cab | 8.33 ft in (2550 mm) |
| Tail Swing Radius | 3.5 ft in (1070 mm) |
| Track Gauge | 5.18 ft in (1578.87 mm) |
| Maximum Dump Height - Long Stick | 12.8 ft in (3.91 m) |
| Maximum Dump Height - Standard Stick | 12.11 ft in (3.7 m) |
| Maximum Horizontal Reach - Long Stick | 19.13 ft in (5.84 m) |
| Maximum Horizontal Reach - Standard Stick | 17.91 ft in (5.46 m) |
| Maximum Reach - Ground Level - Standard Stick | 17.9 ft in (5.46 m) |
| Maximum Vertical Dig Depth - Standard Stick | 8 ft in (2.44 m) |
| Removal Counterweight Clearance | 2 ft in (615 mm) |
| Shipping Height | 8.37 ft in (2551.18 mm) |
| Maximum Cutting Height - Long Stick | 17.98 ft in (5.49 m) |
| Length - Center Of Rollers | 17.91 ft |
| Shipping Length | 17 ft in (5181.61 mm) |
| Height - Over Cab | 8.37 ft in (2.56 m) |
| Swing Radius - Rear | 3.51 ft in (1.07 m) |
| Maximum Cutting Height - Standard Stick | 17.32 ft in (5.28 m) |
| Maximum Digging Depth - Long Stick | 12.11 ft in (3.7 m) |
| Maximum Digging Depth - Standard Stick | 10.8 ft in (3.3 m) |
| Track Shoe Width | 1.31 ft in (0.4 m) |
| Transport Width | 6.5 ft in (1981.2 mm) |
| Width - Over Track | 6.5 ft in (1.99 m) |
Undercarriage
| Shoe Size | 16 in (400 mm) |
| Track Gauge | 5.17 ft in (1580 mm) |
| Max Travel Speed | 2.8 mph (4.6 km/h) |
Swing System
| Machine Swing Speed | 9 rpm |
| Boom Swing - Left - Without Stop | 80 degrees |
| Boom Swing - Left - With Stop | 60 degrees |
| Boom Swing - Right | 50 degrees |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2251 |
| Engine Model | S4Q2 |
| Gross Power | 43.2 hp (32.3 kw) |
| Net Power | 42 hp (31.4 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 153 cu in (2505 L) |
| Engine Model | Mitsubishi S4Q2 |
Operational
| Operating Weight | 10844 lb (4920 kg) |
| Fuel Capacity | 19.1 gal (72 L) |
| Cooling System Fluid Capacity | 3 gal (11 L) |
| Hydraulic System Fluid Capacity | 20.6 gal (78 L) |
| Operating Voltage | 12 V |
| Engine Oil Capacity | 1.9 gal (7 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 3553 psi (24500 kPa) |
| Hydraulic Pump Flow Capacity | 31.4 gal/min (119 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Weights
| Operating Weight | 10582 lb (4800 kg) |
| Operating Weight - With Cab | 10844 lb (4918.8 kg) |
Blade
| Height | 15 in (381 mm) |
| Width | 6.5 ft in (1981.2 mm) |
| Lift Height | 17 in (431.8 mm) |
| Dig Depth | 21 in (533.4 mm) |
Hydraulic System
| Operating Pressure - Swing | 2553 psi |
| Operating Pressure - Equipment | 3553 psi |
| Operating Pressure - Travel | 3553 psi |
| Digging Force - Stick - Standard | 5553 lb (2518.8 kg) |
| Digging Force - Stick - Long | 4788 lb (2171.9 kg) |
| Digging Force - Bucket | 10049 lb (4558.2 kg) |
| Auxiliary Circuit - Primary (245 Bar/3,553 Psi) | 18.5 gal/min |
| Auxiliary Circuits - Secondary - At 174 Bar | 9.25 gal/min |
Service Refill Capacities
| Cooling System | 2.9 gal (11 L) |
| Fuel Tank | 19 gal (72 L) |
| Hydraulic Tank | 12.7 gal (48.1 L) |
| Hydraulic System | 20.6 gal (78 L) |
| Engine Oil | 1.8 gal (6.9 L) |
Engine Dimensions
| Bore | 3.5 in (88.9 mm) |
| Stroke | 4.1 in (104.2 mm) |
| Displacement | 153 cu in (2.6 L) |
Sound Levels
| Cab | 80 dB(A) |
| Canopy | 78 dB(A) |
Msc Comments
| Msc Spec Date | 3/06 |
Travel System
| Maximum Traction Force - High Speed | 5170 lb (2345.1 kg) |
| Maximum Traction Force - Low Speed | 10027 lb (4548.2 kg) |
| Gradeability - Maximum - High | 30 degrees |
| Travel Speed - High | 2.9 mph (4.7 km/h) |
| Travel Speed - Low | 1.6 mph (2.6 km/h) |
