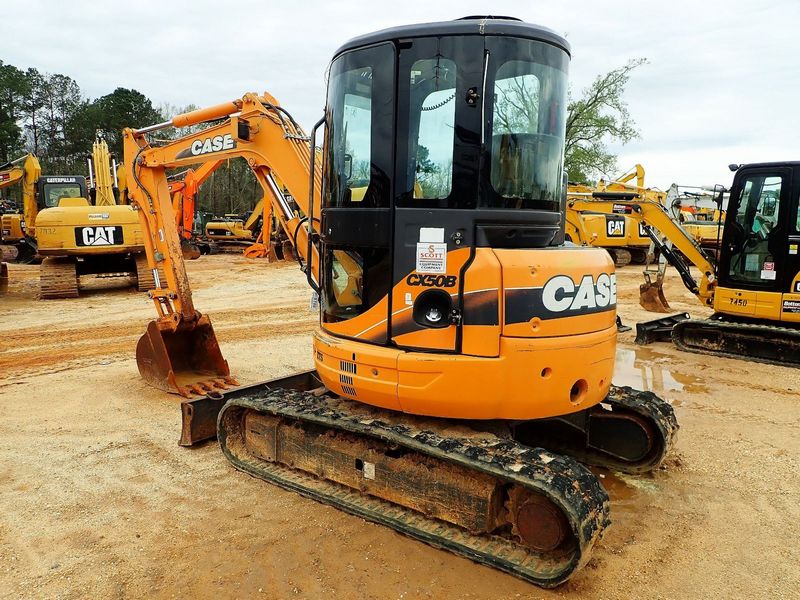

Case CX50B
Browse All Case or Midi Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 17.08 ft in (5230 mm) |
| Shipping Height Of Unit | 8.54 ft in (2600 mm) |
| Max Cutting Height | 18.58 ft in (5670 mm) |
| Max Loading Height | 13.42 ft in (4090 mm) |
| Max Reach Along Ground | 18.83 ft in (5750 mm) |
| Max Vertical Wall Digging Depth | 9.25 ft in (2810 mm) |
| Max Digging Depth | 11.75 ft in (3590 mm) |
| Boom/Stick Option (Hex) 1 | Boom 9'6" (2890mm)/ Stick 5'1" (1560mm) |
Dimensions
| Width To Outside Of Tracks | 6.42 ft in (1960 mm) |
| Length Of Track On Ground | 6.5 ft in (1970 mm) |
| Ground Clearance | 1.31 ft in (345 mm) |
| Height To Top Of Cab | 8.5 ft in (2600 mm) |
| Tail Swing Radius | 3.17 ft in (980 mm) |
| Removal Counterweight Clearance | 2.08 ft in (635 mm) |
Undercarriage
| Shoe Size | 15.75 in (400 mm) |
| Number Of Track Rollers Per Side | 5 |
| Ground Pressure | 3.9 psi (26.89 kPa) |
| Number Of Carrier Rollers Per Side | 1 |
| Max Travel Speed | 2.9 mph (4.6 km/h) |
| Drawbar Pull | 12170 lb (54.13 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV88-BXYB |
| Net Power | 39.8 hp (29.3 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 133.5 cu in (2.2 L) |
| Max Torque | 102.7 lb ft (139.3 Nm) |
| Torque Measured @ | 1440 rpm |
Operational
| Operating Weight | 10261 lb (4660 kg) |
| Fuel Capacity | 14 gal (53 L) |
| Cooling System Fluid Capacity | 1.6 gal (6 L) |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 17 gal (63 L) |
| Engine Oil Capacity | 2 gal (7.4 L) |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 3336 psi (159.8 kPa) |
| Hydraulic Pump Flow Capacity | 30 gal/min (114.2 L/min) |
Swing Mechanism
| Swing Speed | 8.8 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.4 yd3 (0.3 m3) |
