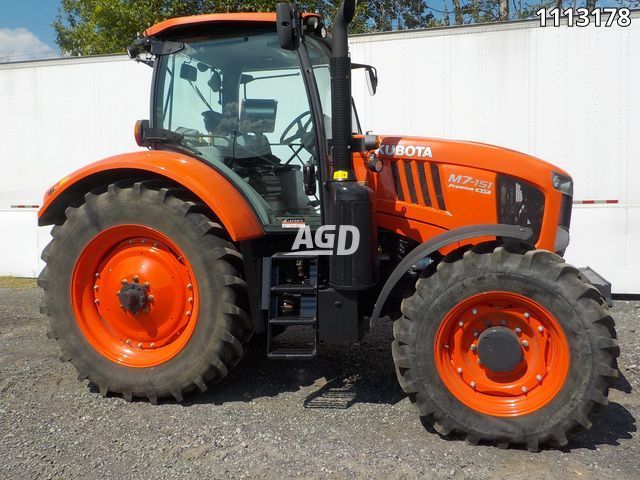

Kubota M7-151P-KVT
Browse All Kubota or MFWD Tractor Models
Contents:
Dimensions
| Overall Length | 187.8 in (4770 mm) |
| Wheelbase | 8.93 ft in (2720 mm) |
| Overall Width | 9.17 ft in (2794 mm) |
| Ground Clearance | 16.15 in (410 mm) |
| Overall Height | 9.95 ft in (3030 mm) |
| Front Tread Range | 75.36 in (1914 mm) |
| Rear Tread Range | 72.84 in (1850 mm) |
| Turning Radius Without Brakes 1 | 13.13 ft in (4000 mm) |
Engine
| Battery | 174Ah (20 HR)/1400A |
| Number Of Cylinders | 4 |
| Engine Make | KUBOTA |
| Engine Model | KUBOTA V6108-CR-TIEF4 |
| Engine Type | Direct Injection |
| Gross Power | 148 hp (110.4 kw) |
| Air Cleaner | 10 Dry, dual-element |
| Pto Power | 120.1 hp (89.5 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 492.7 lb ft (668 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 374 cu in (6.2 L) |
| Aspiration | Turbocharger with intercooler |
| Bore | 4.7 in (118 mm) |
| Stroke | 5.6 in (140 mm) |
| Alternator | 130 amps |
| Model Name | M7-151 |
Capacities
| Diesel Exhaust Fluid (Def) Tank | 10.1 gal (38 L) |
| Fuel Tank | 87.2 gal (330 L) |
| Engine Oil | 5.9 gal (22 L) |
| Engine Coolant | 6.4 gal (24 L) |
Operational
| Operating Weight | 15097.3 lb (6848 kg) |
| Tires | Front - 14.9R28 , Rear - 18.4R38 |
| 3 Point Hitch Type | Category 3/3N |
| 3 Point Hitch Lift Capacity @ 24 Inches | 11794.8 lb (5350 kg) |
Power Take-Off(Pto)
| Pto | Front speed - 1000 - HP |
| Rear Pto | Speed - 540 / 540E / 1000 / 1000E - HP |
| Pto Speeds @ Engine Rpm | 1930 |
Transmission
| Brake Type | Hydraulically operated wet disc brakes |
| Max Speed | 25 mph (40.3 km/h) |
Hydraulic System
| System Pressure | 2900.8 psi (20000 kPa) |
| Hydraulic System | Electronic draft control |
| Pump Flow Capacity | 29.1 gal/min (110 L/min) |
