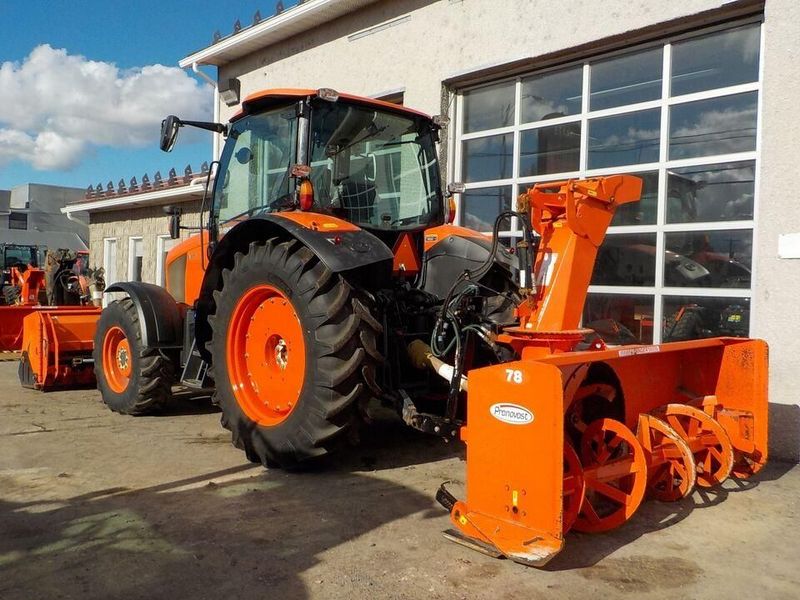

Kubota M6-141DTSCC-F
Browse All Kubota or MFWD Tractor Models
Contents:
Dimensions
| Overall Length | 171.66 in (4360 mm) |
| Wheelbase | 8.83 ft in (2690 mm) |
| Overall Width | 7.16 ft in (2180 mm) |
| Ground Clearance | 22.25 in (565 mm) |
| Height With Rops | 9.44 ft in (2875 mm) |
| Front Wheel Tread Width | 73.82 in (1875 mm) |
| Rear Wheel Tread Width - Min | 82.29 in (2090 mm) |
| Turning Radius Without Brakes 1 | 13.78 ft in (4200 mm) |
Engine
| Battery | 12 V, 160Ah at 20 hours, 1090 CCA |
| Number Of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | V-3800-CR-TIER4 |
| Engine Type | Common Rail System, direct injection, liquid-cooled |
| Net Power | 133 hp (99.2 kw) |
| Gross Power | 141.4 hp (105.5 kw) |
| Air Cleaner | 10" Dry, dual-element |
| Pto Power | 114 hp (85.1 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 374 cu in (6.2 L) |
| Aspiration | Turbocharger with intercooler |
| Bore | 4.7 in (118 mm) |
| Stroke | 5.6 in (140 mm) |
| Alternator | 130 amps |
| Model Name | M6-141DTSCC-F |
Operational
| Def Tank Capacity | 4.2 gal (15.9 L) |
| Operating Weight | 10946 lb (4965 kg) |
| Tires | Front - 14.9 R24, Rear - 18.4 R38 |
| 3 Point Hitch Type | Telescopic lower link ends, telescopic stabilizers |
| 3 Point Hitch Lift Capacity @ 24 Inches | 6834.4 lb (3100 kg) |
Power Take-Off(Pto)
| Power Take-Off(Pto) Type | Live-independent PTO, hydraulically operated wet clutch |
Transmission
| Number Of Forward Gears | 24 |
| Number Of Reverse Gears | 24 |
| Max Speed | 24.3 mph (39.2 km/h) |
Hydraulic System
| Number Of Remote Control Valves | 2 standard |
