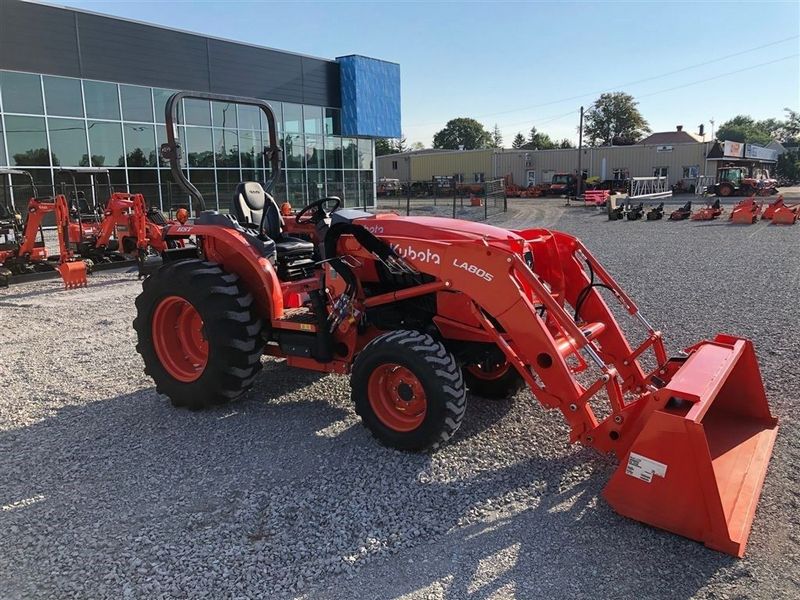

Kubota L4060HSTRC
Browse All Kubota or MFWD Tractor Models
Contents:
Dimensions
| Overall Length | 121.46 in (3085 mm) |
| Wheelbase | 6.22 ft in (1895 mm) |
| Overall Width | 5.55 ft in (1690 mm) |
| Ground Clearance | 14.18 in (360 mm) |
| Height With Rops | 8.14 ft in (2480 mm) |
| Front Tread Range | 45.48 in (1155 mm) |
| Rear Tread Range | 47.2-60.2 in, 1200-1530 mm |
Engine
| Number Of Cylinders | 4 |
| Engine Make | KUBOTA |
| Engine Model | L4060HSTRC |
| Engine Type | E-TVCS, indirect injection, vertical, liquid-cooled 4-cycle diesel |
| Gross Power | 42 hp (31.4 kw) |
| Net Power | 40 hp (29.9 kw) |
| Pto Power | 32.5 hp (24.3 kw) |
| Rated Speed | 2600 rpm |
| Displacement | 148.5 cu in (2.5 L) |
| Aspiration | Natural with EGR |
| Bore | 3.5 in (87 mm) |
| Stroke | 4.1 in (102.4 mm) |
Operational
| Operating Weight | 3527.4 lb (1600 kg) |
| Fuel Capacity | 13.5 gal (51 L) |
| 3 Point Hitch Type | Category 1 |
| 3 Point Hitch Lift Capacity @ 24 Inches | 2755.8 lb (1250 kg) |
| Turning Radius | 8.9 ft in (2700 mm) |
| Tire Size Front - 2wd / 4wd | 8.3 - 16 |
| Rear Tires Size 2wd/4wd | 14.9 - 24 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Power Take-Off(Pto)
| Mid- Pto | 1 speed: 2000 rpm |
| Rear Pto | 1 speed: 540 rpm |
| Power Take-Off(Pto) Type | Independent |
Transmission
| Brakes | Wet disc type |
| Steering | Hydrostatic power steering |
| Clutch, Wet/Dry | Dry type single stage |
| Transmission Type | HST Plus |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed | 16.8 mph (27 km/h) |
Hydraulic System
| Implement Pump Flow Ps | 9.4 gal/min (35.6 L/min) |
| Pump Flow Capacity | 4.7 gal/min (17.8 L/min) |
