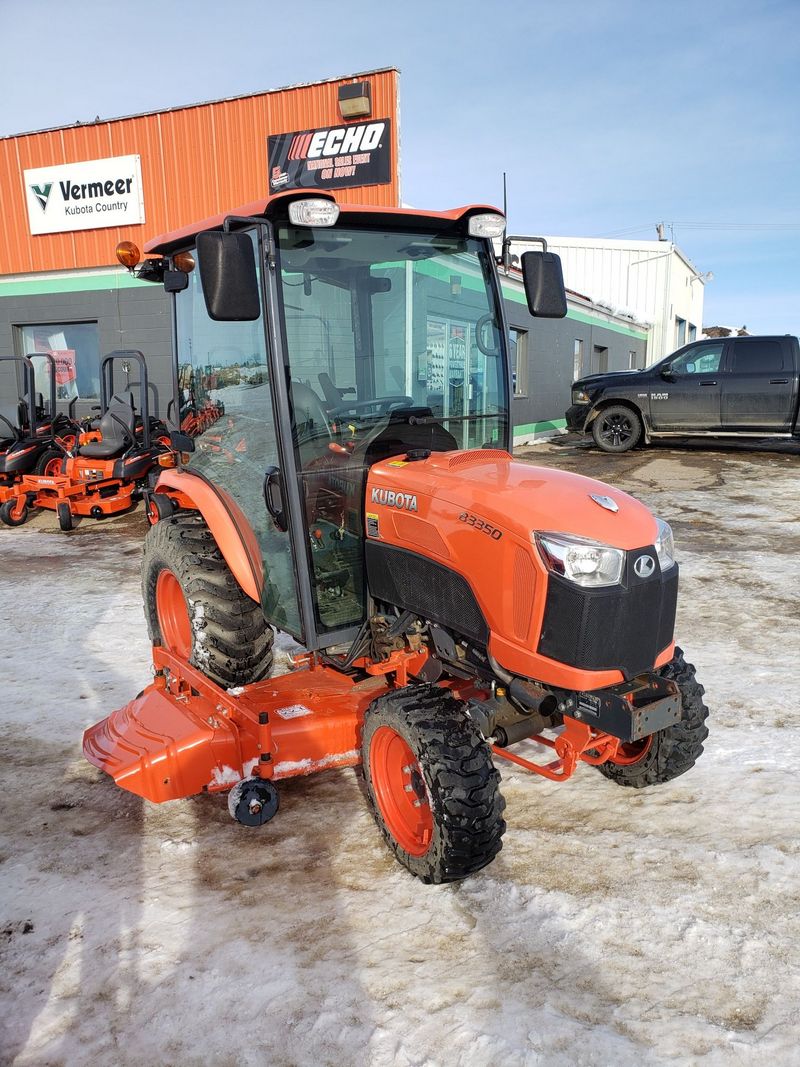

Kubota B3350HSDC
Browse All Kubota or MFWD Tractor Models
Contents:
Dimensions
| Overall Length | 114.18 in (2900 mm) |
| Wheelbase | 5.47 ft in (1666 mm) |
| Overall Width | 1365 ft in (416052 mm) |
| Ground Clearance | 14.57 in (370 mm) |
| Overall Height | 7.06 ft in (2150 mm) |
| Front Tread Range | 36.82 in (935 mm) |
| Rear Tread Range | 41.34 in (1050 mm) |
| Turning Radius With Brakes | 6.89 ft in (2.1 m) |
Engine
| Horsepower - Gross | 27 hp (20.2 kw) |
| Battery | 12 V, RC : 80 min, CCA : 430 A |
| Number Of Cylinders | 4 |
| Engine Make | KUBOTA |
| Engine Model | V1505-T-E4-D26-Q |
| Engine Type | Indirect Injection |
| Gross Power | 33 hp (24.7 kw) |
| Lubrication | Forced lubrication |
| Cooling System | Pressurized radiator |
| Air Cleaner | 4.5 inch Dual paper element |
| Power Measured @ | 2500 rpm |
| Max Torque | 77.8 lb ft (105.4 Nm) |
| Displacement | 91.5 cu in (1.5 L) |
| Bore | 3.1 in (78 mm) |
| Stroke | 3.1 in (78.4 mm) |
| Alternator | 60 amps |
Capacities
| Engine Oil With Filter | 1.3 gal (4.8 L) |
| Fuel Tank | 7.2 gal (27 L) |
| Transmission | 4 gal (15 L) |
| Engine Coolant | 1.2 gal (4.3 L) |
Operational
| Operating Weight | 2447.2 lb (1110 kg) |
| Tires | Front - 7 - 12 , Rear - 12.4-16 |
| 3 Point Hitch Type | SAE Category 1 |
| 3 Point Hitch Lift Capacity @ 24 Inches | 1675.6 lb (760 kg) |
| Turning Radius | 6.9 ft in (2100 mm) |
Power Take-Off(Pto)
| Pto Speed Rear | 540 rpm |
| Pto Speed Mid | 2500 rpm |
| Mid- Pto | USA No. 5 (KUBOTA 10-tooth) involute spline |
| Rear Pto | SAE 1-3/8, 6 splines |
Transmission
| Brake Type | Wet disk type |
| Differential Lock | Standard |
| Transmission Type | Main-hydrostatic transmission |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Final Drive Type | Spur gear |
Hydraulic System
| Hydraulic System Type | Open center |
| Hydraulic System | Position control valve |
| Pump Type | Dual pump |
| Pump Flow Capacity | 8.8 gal/min (33.1 L/min) |
