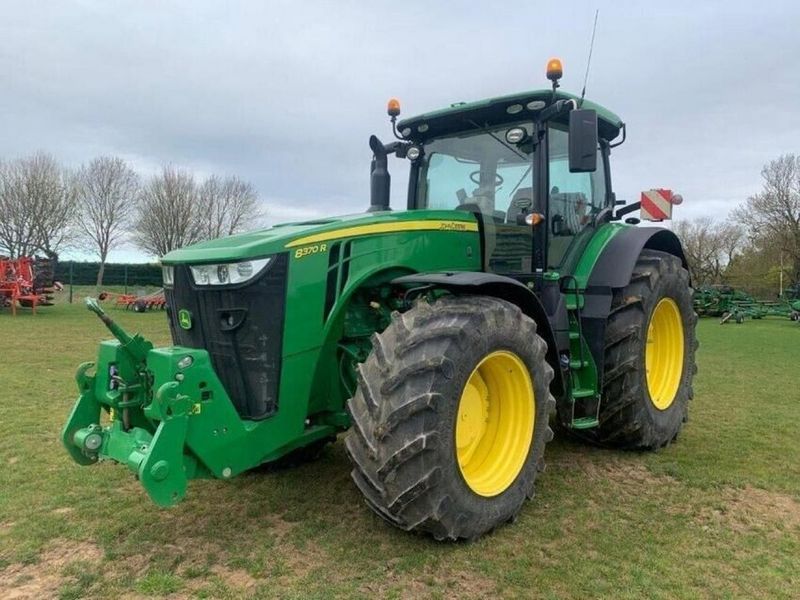

John Deere 8370R
Browse All John Deere or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | "MFWD: 3080 mm 121.3 in. ILS: 3050 mm 120.1 in." |
| Approximate Shipping Weight (Open-Station; Cab) | "ILS/IVT with 625-kg (1378-lb) inner weights,front weight support, Cat4 hitch with QC, 113.6 L (30 gal.) fuel, 480/80R50 rear duals, 420/85R34 front duals: 15,009 kg 33,091 lb", "ILS/IVT with: inner weights: 625 kg 1378 lb Front weight support/Cat4 hitch with QC/Fuel 113.6 L 30 gal. 480/80R50 duals/420/85R34 front duals 14,828 kg 32,691 lb" |
| Front Axle Clearance, In. (Mm) | "MFWD: 686 mm 27 in. ILS: 590 mm 23.2 in." |
| Front Tread Range | "1500 MFWD/ILS: 1524-3657 mm 60-144 in." |
| Limited Slip Differential | Hydraulic lock differential |
Engine
| Number Of Cylinders | 6 |
| Engine Manufacturer | John Deere |
| Family | 9.0L: EJDXL09.0301 |
| Cylinder Liners | Wet |
| Fuel Tank Capacity | "Standard With G47/48 tires: 645 L 170.4 U.S. gal. With G49 tires: 686 L 181.2 U.S. gal." |
| Displacement | 549 cu in (9 L) |
| Aspiration | Dual turbochargers, variable geometry turbo with fixed geometry turbo in series |
Power Take-Off(Pto)
| Standard | "45 mm 1.75 in. 20 spline, 1000 rpm" |
| Optional | "in-cab shiftable: 45 mm 1.75 in. 20 spline, 1000 rpm 1000E economy rpm" |
| Pto Actuation | Electro-hydraulic |
| Pto Speeds @ Engine Rpm | "IVT: 1000 PTO rpm @ 2000 engine rpm, 1000 ECO PTO @ 1594 engine rpm, and 540 PTO rpm @ 1814 engine rpm e23: 1000 PTO rpm @ 1995 engine rpm, 1000 ECO PTO @ 1590 engine rpm, and 540 PTO rpm @ 1810 engine rpm" |
Performance
| Advertised Pto | 313 hp (233.5 kw) |
| Advertised Engine | 370 hp (276 kw) |
Transmission
| Standard Transmission; Forward/Reverse | IVT (42) km/h |
| Clutch, Wet/Dry | Wet |
| Creeper | IVT |
| Reverser | Left-hand or Right-hand |
| On-The-Go Shifting (Yes/No/Partial) | Yes |
| Opt. Transmission; Forward/Reverse | "e23; 23/11 (42 or 50) km/h IVT (50) km/h" |
Tires
| Mfwd | "Front 420/85R34Rear 480/80R50" |
Hydraulic
| Maximum Operating Pressure | 2958 psi (20394.7 kPa) |
| Remote Control Valves Available | "Standard: four Optional: five or six 2 Front SCV option" |
| Hitch Draft Control Load Sense Type | Electronic |
| Sensing Type | Electro-hydraulic |
| Joystick Scv Control | Electro-hydraulic optional |
| Hydraulic Type | Closed-center, pressure/flow compensated |
| Pump Rated Output | "Standard 227.1 L/min 60 gpmOptional 321 L/min 85 gpm" |
| Hitch Lift Cap. Lb (Kg) @24 In. Bhnd Lift Pt. | "Standard Cat 4N/3: 9072 kg Cat 4N/3: 20,000 lbOptional Cat 4N/3: 6,803 kg Cat 4N/3: 15,000 lb" |
| Hitch Category (Sae Designation) | Cat 4N/3 |
| Rated Flow @ One Scv, Gpm (L/Min.) 1 | "Rear: 0.5 in. SCV: 132 L/min 35 gpm Rear: 0.75 in. SCV: 153 L/min 40.5 gpm Front SCV: 96 L/min 25 gpm" |
Final Drive
| Final Drive Type | Inboard planetary |
| Differential Controls | Electro-hydraulic |
| Availability | "Front YesFront & Rear Yes Yes" |
| Engage On-The-Go Rear Differential Lock | Yes |
| Axle Type | Bar axle, rack and pinion |
| Brakes, Type And Control | Hydraulic wet disc |
Operator Station
| Rollover Protective Structure | "Gearshift Location - Console/Floor CommandARM" |
| Cab | "Doors Left handPlatform - Flat/Straddle FlatSeat Suspension System Standard: air Optional: Active Seat Optional: Cab suspension with Air Seat" |
