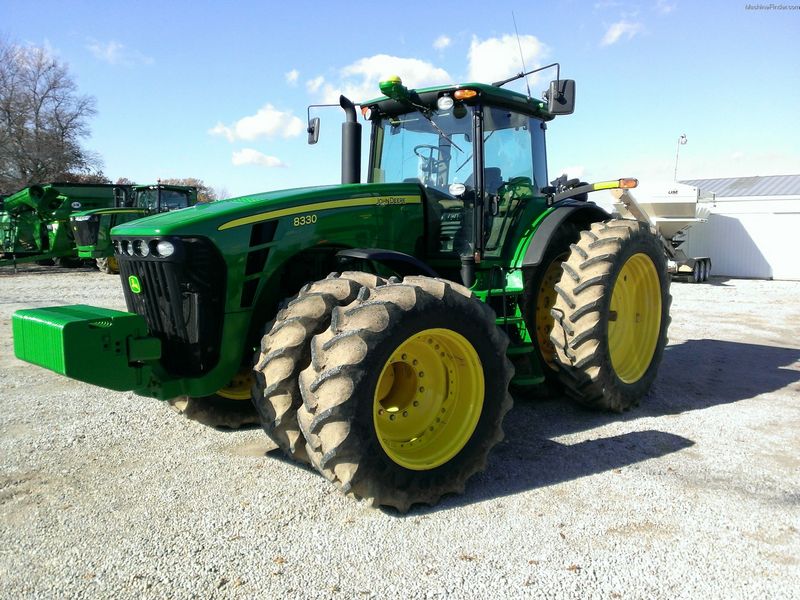

John Deere 8330 225 PTO hp
Browse All John Deere or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 10.01 ft in (3050 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Gross Power | 275 hp (205.1 kw) |
| Pto Power | 226.6 hp (169 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 835 lb ft (1132.2 Nm) |
| Torque Measured @ | 1598 rpm |
| Displacement | 549.3 cu in (9 L) |
| Aspiration | turbocharged,air-to-air aftercooled |
Operational
| Fuel Capacity | 180 gal (681 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 14189 lb (6436 kg) |
| Turning Radius | 18.7 ft in (5680 mm) |
| Tire Size Front - 2wd / 4wd | 420/90R30 |
| Rear Tires Size 2wd/4wd | 480/80R46 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 4 |
Hydraulic System
| Relief Valve Setting | 2990 psi (20615.4 kPa) |
| Pump Flow Capacity | 44 gal/min (166.6 L/min) |
| Number Of Remote Control Valves | 3 |
