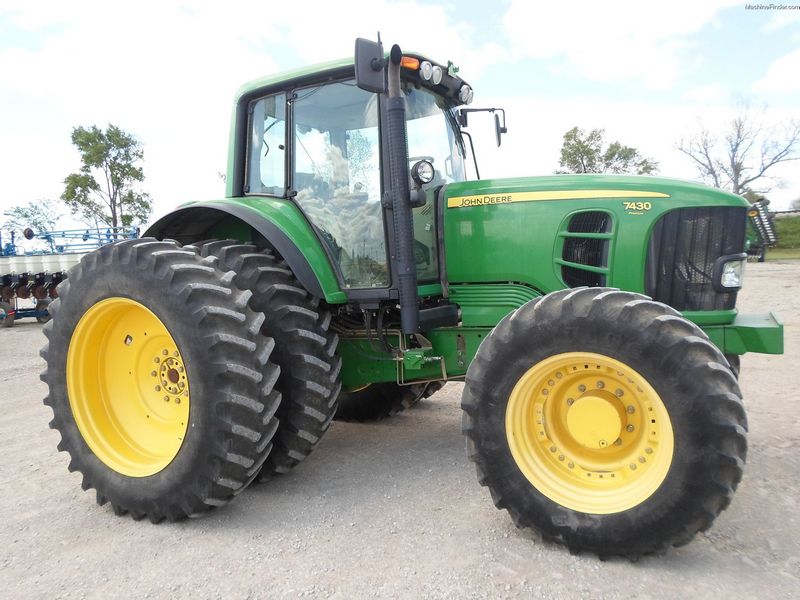

John Deere 7430 Premium Cab Tractor
Browse All John Deere or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 8.81 ft in (2685 mm) |
Engine
| Engine Make | 2240 |
| Engine Model | 6.8L PowerTech Plus |
| Gross Power | 166 hp (123.8 kw) |
| Pto Power | 140 hp (104.4 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 415 cu in (6.8 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 14594.7 lb (6620 kg) |
| Fuel Capacity | 80.6 gal (305 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 10600 lb (4808.1 kg) |
| Turning Radius | 15.1 ft in (4602 mm) |
| Tire Size Front - 2wd / 4wd | 16.9R28 |
| Rear Tires Size 2wd/4wd | 18.4R42 |
Transmission
| Transmission Type | PowrQuad Plus 16/16 |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 16 |
| Max Speed | 18.7 mph (30 km/h) |
Hydraulic System
| Relief Valve Setting | 2900 psi (19994.8 kPa) |
| Pump Flow Capacity | 29.1 gal/min (109.8 L/min) |
| Number Of Remote Control Valves | 2 |
