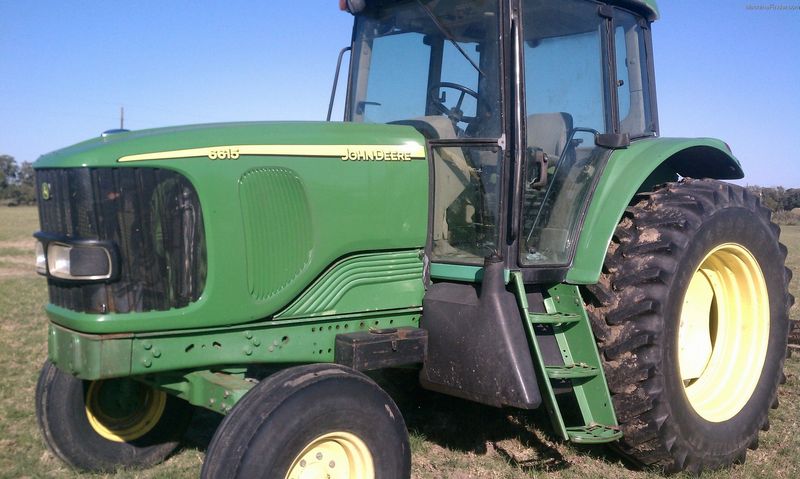

John Deere 6615
Browse All John Deere or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 8.7 ft in (2650 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Gross Power | 115 hp (85.8 kw) |
| Pto Power | 99.6 hp (74.3 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 311 lb ft (421.7 Nm) |
| Torque Measured @ | 1499 rpm |
| Displacement | 414 cu in (6.8 L) |
| Aspiration | turbocharged and Intercooler |
Operational
| Operating Weight | 9369.7 lb (4250 kg) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 5915 lb (2683 kg) |
| Tire Size Front - 2wd / 4wd | 12.4-24 |
| Rear Tires Size 2wd/4wd | 18.4-38 |
Transmission
| Transmission Type | Synchronized |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 4 |
Hydraulic System
| Relief Valve Setting | 2500 psi (17236.9 kPa) |
| Pump Flow Capacity | 17.5 gal/min (66.3 L/min) |
