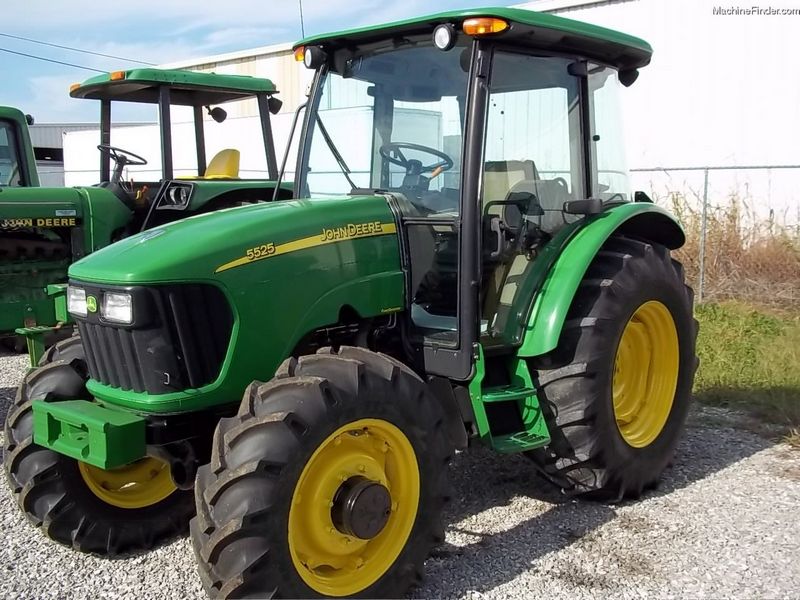

John Deere 5525
Browse All John Deere or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 7.15 ft in (2178 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045 |
| Gross Power | 91 hp (67.9 kw) |
| Pto Power | 75 hp (56 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 229 lb ft (310.5 Nm) |
| Torque Measured @ | 1401 rpm |
| Displacement | 276 cu in (4.6 L) |
| Aspiration | turbocharged |
Operational
| Fuel Capacity | 25.5 gal (96.6 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 3374 lb (1530.5 kg) |
| Turning Radius | 10.2 ft in (3100 mm) |
| Tire Size Front - 2wd / 4wd | 11.2-24 6PR R1 |
| Rear Tires Size 2wd/4wd | 420/90R30 R1 Radial |
Transmission
| Transmission Type | SyncShuttle |
| Number Of Forward Gears | 9 |
| Number Of Reverse Gears | 3 |
Hydraulic System
| Relief Valve Setting | 2860 psi (19719 kPa) |
