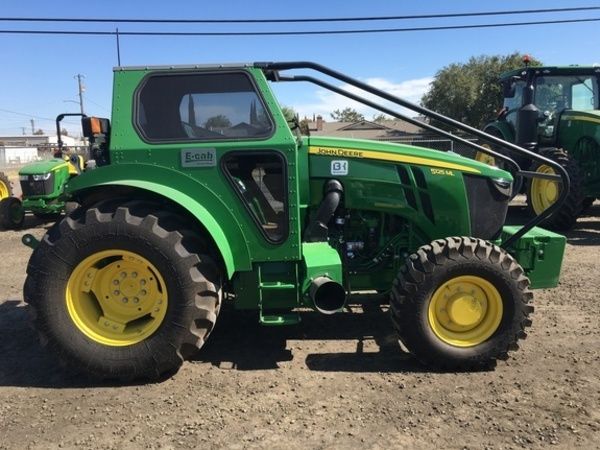

John Deere 5125ML
Browse All John Deere or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 92.5 ft in (2349.5 mm) |
| Approximate Shipping Weight (Open-Station; Cab) | "PowrQuad models: Open: 3975 kg 8740 lb Cab: Not applicable" |
Engine
| Number Of Cylinders | 4 |
| Family | FJDXL04.5211 |
| Cylinder Liners | Wet sleeved |
| Rated Power | 115 hp (85.8 kw) |
| Rated Pto Power | 75 hp (56 kw) |
| Displacement | 276 cu in (4.6 L) |
| Aspiration | Turbocharged |
| Description | John Deere PowerTech™ 4045 engine |
Capacities
| Fuel Tank - Diesel | 38 gal (143.9 L) |
| Diesel Exhaust Fluid (Def) Tank | 3.2 gal (12.2 L) |
Transmission
| Clutch, Wet/Dry | Wet |
| Creeper | 16F/16R PowrQuad with creeper |
| Reverser | Yes |
| Transmission Type | "Standard: 12F/12R PowrReverser Optional: 24F/12R PowrReverser" |
Tires
| Wheel Tread Range | "Front: 1299-1997 mm 51.1-78.6 in." |
| Turning Radius With Brakes | 11 ft in (3.4 m) |
| Turning Radius Without Brakes | 12.5 ft in (3.9 m) |
| Front | 12.5/80 - 18 In. I3 Bias |
| Rear | 19.5L - 24 In 10PR R4 Bias |
Hydraulic
| Pump Rated Output 1 | 31 gal/min (117.4 L/min) |
| Joystick Scv Control | Optional |
| Number Of Rear Selective Controls Valves (Scvs) | Standard: three |
| Number Of Mid Selective Controls Valves (Scvs) | Zero; up to two |
| Hydraulic Type | Standard: Pressure-and-flow compensated (PFC) system |
| Available Flow At A Single Rear Scv | "Standard: 100 L/min 26.4 gpm" |
Operator Station
| Rollover Protective Structure | "Rigid - foldable - telescopic Foldable, two-postPlatform - flat/straddle FlatGearshift location - console/floor Floor" |
Rear Hitch
| Hitch Draft Control Load Sense Type | Standard: Electrohydraulic |
| Hitch Category (Sae Designation) | Category 2 |
| Remote Control Valves Available | Standard: three |
| Maximum Lift Capacity Behind Lift Points | "Standard: 3164 kg 6975 lb Optional: 3569 kg 7868 lb" |
| Sensing Type | Top link |
Rear Power Take -Off (Pto)
| Engine Rpm (At Rated Pto Speeds) | "540 at 2100 rpm 540E at 1645 rpm 1000 at 2103 rpm" |
| Pto Actuation | Electrohydraulic |
| Rear Power Take -Off (Pto) Type | Standard: 540/540E/1000 |
Rear Axle
| Differential Controls | Electrohydraulic |
| Axle Type | Flanged |
| Brakes,Type And Control | Hydraulic wet disc |
| Rear Axle Type | Inboard planetary |
