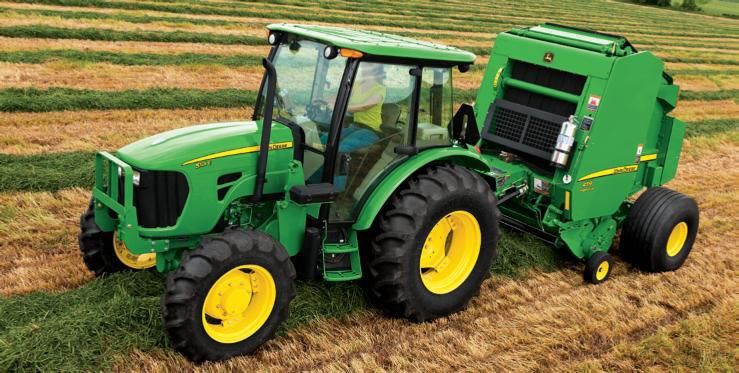

John Deere 5101E Limited
Browse All John Deere or MFWD Tractor Models
Contents:
Dimensions
| Wheelbase | 7.15 ft in (2178 mm) |
| Ground Clearance | 15.8 in (401.32 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045 |
| Gross Power | 101 hp (75.4 kw) |
| Pto Power | 82 hp (61.2 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 276 cu in (4.6 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 7434 lb (3372 kg) |
| Fuel Capacity | 33.5 gal (126.9 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 3213 lb (1457.4 kg) |
| Turning Radius | 10.2 ft in (3100 mm) |
| Tire Size Front - 2wd / 4wd | 12.4-24, R1 |
| Rear Tires Size 2wd/4wd | 18.4-30, R1 |
Transmission
| Transmission Type | PowrReverser |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 12 |
Hydraulic System
| Pump Flow Capacity | 22.5 gal/min (85.1 L/min) |
| Number Of Remote Control Valves | 1 |
