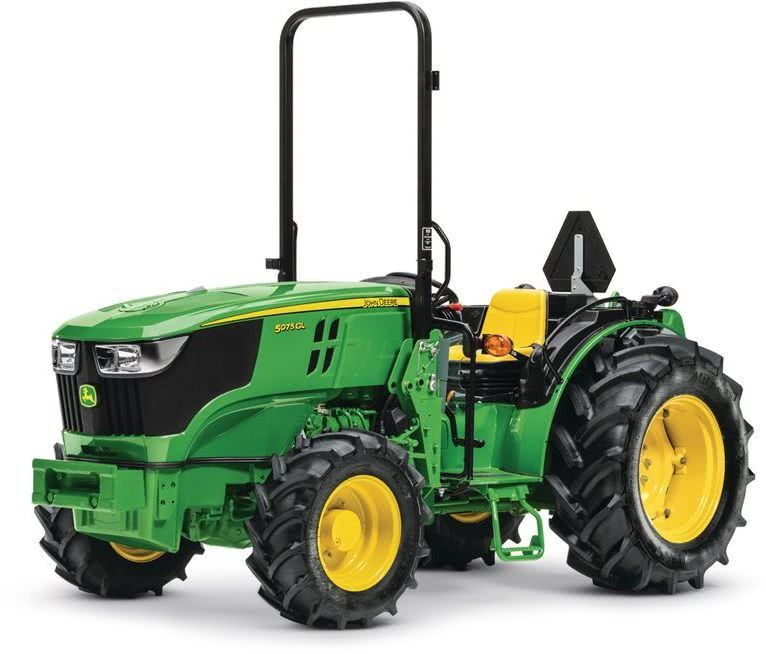

John Deere 5075GL
Browse All John Deere or MFWD Tractor Models
Contents:
Dimensions
| Overall Length | 170 in (4318 mm) |
| Wheelbase | 82.5 ft in (2095.5 mm) |
| Drawbar Clearance | Min. 227 mm 8.9 in. Max. 267 mm 10.5 in. |
| Front Axle Center | Min. 227 mm 8.9 in. Max. 267 mm 10.5 in. |
Engine
| Family | FPTF34 |
| Cylinder Liners | Wet sleeved |
| Rated Speed | 2300 rpm rpm (deletedelete) |
| Rated Power | 73 hp (54.5 kw) |
| Rated Pto Power | 61 hp (45.5 kw) |
| Displacement | 207 cu in (3.4 L) |
| Aspiration | Turbocharged |
| Description | 3.4L Fiat® Powertrain Technologies |
| Emission Level | Final Tier 4 |
| After Treatment Type | Diesel Oxidation Catalyst (DOC) and Diesel Particulate Exhaust Filter (DPF) |
Capacities
| Fuel Tank - Diesel | 22.7 gal (86 L) |
Electrical
| Alternator Size | 120 amp |
Transmission
| Clutch, Wet/Dry | Wet |
| Creeper | Yes |
| Reverser | Yes |
| Transmission Type | 24F/12R PowrReverser, EH Hi-Lo |
Steering
| Steering Type | Dynamic Load Sensing, Hydrostatic, Flow Metering |
Weights
| Base Machine Weight | "OOS: 2530 kg 5577 lb Cab: 2745 kg 6051 lb" |
Tires
| Turning Radius Without Brakes | 11.9 ft in (3627.2 mm) |
| Front | 6.50R16 |
| Rear | 260/70 R16 |
Front Axle
| Front Axle Type | Carraro Drivetech |
| Front Axle Differential Lock | Self Locking Differential |
Hydraulic
| Number Of Rear Selective Controls Valves (Scvs) | "Standard: 2 Optional: 4" |
| Scv Control | Mechanical |
| Hydraulic Type | Open Center |
| Pump Rated Output, Gpm (L/Min.) | "Standard: 96.5 L/min 25.5 gpm Optional: 126.4 33.4 gpm" |
| Available Flow At A Single Rear Scv | "66.2 L/min 17.6 gpm" |
Operator Station
| Rollover Protective Structure | "Rigid - foldable - telescopic Rigid, front foldingPlatform - flat/straddle StraddleGearshift location - console/floor Floor Yes" |
| Seat | "OOS: standard: COBO MT SC74 M200 Optional: COBO MT SC74 M97 Cab: standard: COBO MT SC74 M200" |
| Db(A) Rating | 82 |
Rear Hitch
| Hitch Draft Control Load Sense Type | Mechanical |
| Hitch Category (Sae Designation) | Category 1/Category 1N |
| Maximum Lift Capacity Behind Lift Points | 5620 lb (2549.2 kg) |
| Sensing Type | Top Link Draft Sensing |
Rear Power Take -Off (Pto)
| Engine Rpm (At Rated Pto Speeds) | "540 at 1938 rpm 540E at 1648 rpm" |
| Pto Actuation | Electrohydraulic |
| Rear Power Take -Off (Pto) Type | Standard: 540/540E |
Rear Axle
| Final Drive Type | Three point inboard planetary drives |
| Differential Controls | Multi disk oil cooled design |
| Axle Type | Flanged |
| Brakes,Type And Control | Multi-disc rear braking |
| Rear Differential Lock | Electrohydraulic |
| Rear Axle Type | Carraro Drivetech |
