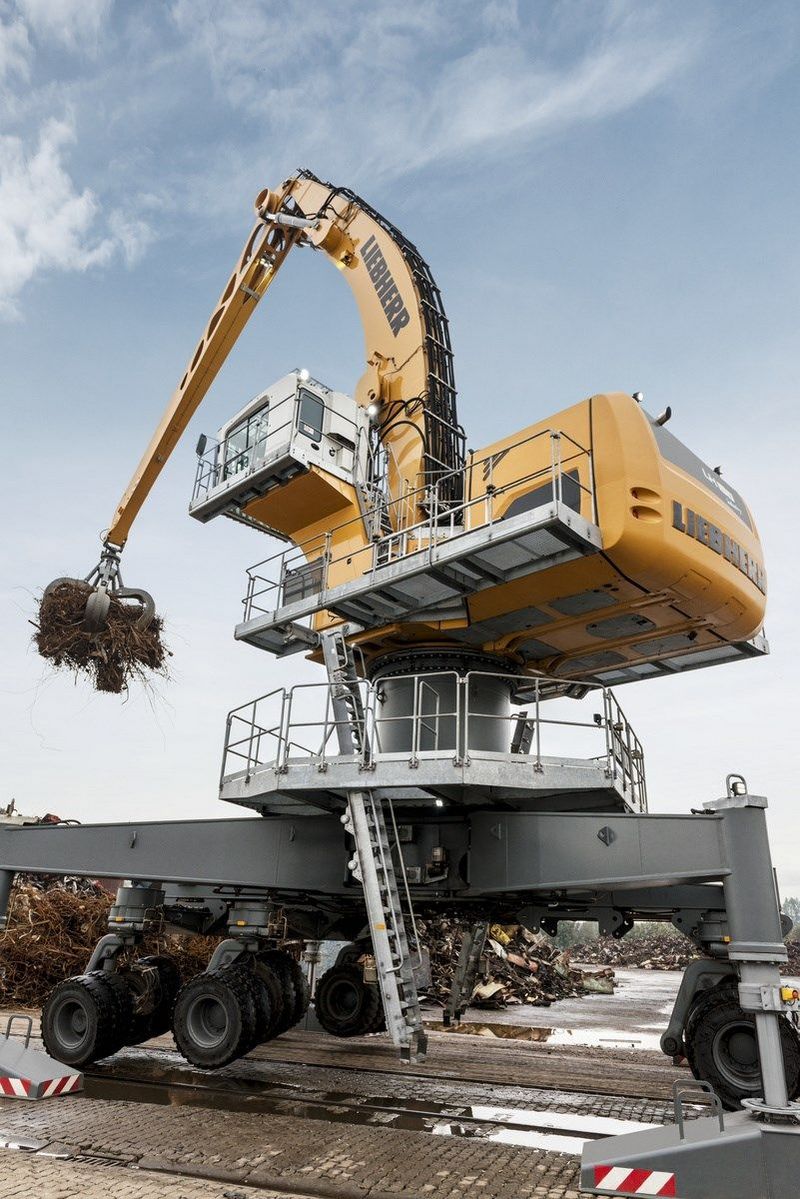

Liebherr LH150M HIGH RISE INDUSTRY LITRONIC
Browse All Liebherr or Material Handler Models
Contents:
Dimensions
| Ground Clearance | 4.8 in (121.92 mm) |
| Undercarriage Width | 30.6 ft in (9326.88 mm) |
| Height To Top Of Cab | 20.9 in (530.86 mm) |
Engine
| Emission Tier Level | Tier 4f |
| Battery | 4 x 180 Ah/12 V |
| Number Of Cylinders | 8 |
| Engine Model | D9508 |
| Gross Power | 536 hp (399.7 kw) |
| Air Cleaner | dry-type air cleaner with pre-cleaner, primary and safety elements |
| Net Power | 543 hp (405 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 4450035.6 cu in (72923 L) |
| Bore | 5.1 in (129.6 mm) |
| Stroke | 5.9 in (149.9 mm) |
| Alternator | 140 amps |
Operational
| Urea Tank | 48 gal (181.7 L) |
| Fuel Capacity | 740 gal (2801.3 L) |
| Hydraulic Fluid Capacity | 328 gal (1241.7 L) |
| Hydraulic System Fluid Capacity | 502 gal (1900.3 L) |
Swing Mechanism
| Swing Speed | 6.5 rpm |
| Swing Torque | 147512 lb ft (199999.5 Nm) |
Hydraulic
| Pump Type | 2 Liebherr axial piston variable displacement pumps |
| Pump Capacity | 292 gal/min (1105.4 L/min) |
| Relief Pressure | 5067 psi (34935.8 kPa) |
Brakes
| Service Brake | two circuit travel brake system with accumulator |
