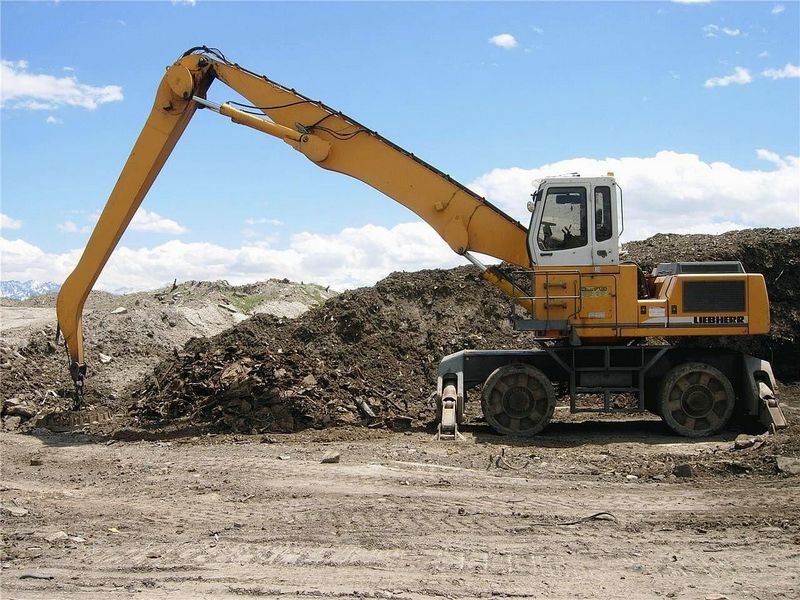

Liebherr A944BHD
Browse All Liebherr or Material Handler Models
Contents:
Boom/Stick Option (Mat) 1
| Max Height | 61 ft in (18592.8 mm) |
| Max Reach Along Ground | 17.72 ft in (5400 mm) |
| Max Depth | 13 ft in (3962.4 mm) |
| Boom/Stick Option (Mat) 1 | Straight Boom 9500mm w/stick 7300mm |
Dimensions
| Ground Clearance | 1.5 ft in (455 mm) |
| Shipping Length | 43.8 ft in (13350 mm) |
| Undercarriage Width | 10.83 ft in (3300 mm) |
| Shipping Height | 12.59 ft in (3835 mm) |
| Height To Top Of Cab - Fixed Riser | 16.51 ft in (5030 mm) |
| Height To Top Of Cab - Hydraulic Riser Raised | 24.92 ft in (7595 mm) |
| Upperstructure Clearance | 6.32 ft in (1925 mm) |
Wheel Undercarriage
| Wheelbase | 11.16 ft in (3400 mm) |
| Width W/ Stabilizers On Ground | 17.56 ft in (5350 mm) |
| Tire Size | 1500mm-530mm |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2245 |
| Engine Model | D 926 TI-E |
| Net Power | 245 hp (182.7 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 610.3 cu in (10 L) |
| Aspiration | Direct Injection Turbo-charged and after-cooled reduced emissions |
Operational
| Operating Weight W/O Attachment | 110010.7 lb (49900 kg) |
| Fuel Capacity | 186.3 gal (705 L) |
| Hydraulic System Fluid Capacity | 179.7 gal (680 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
Swing Mechanism
| Swing Speed | 6.4 rpm |
| Swing Torque | 83.2 lb ft (112.7 Nm) |
Transmission
| Max Speed | 8.7 mph (14 km/h) |
Hydraulic
| Pump Type | Liebherr variable flow, swash plate double pump |
| Pump Capacity | 137.4 gal/min (520 L/min) |
| Relief Pressure | 5076.4 psi (35000 kPa) |
