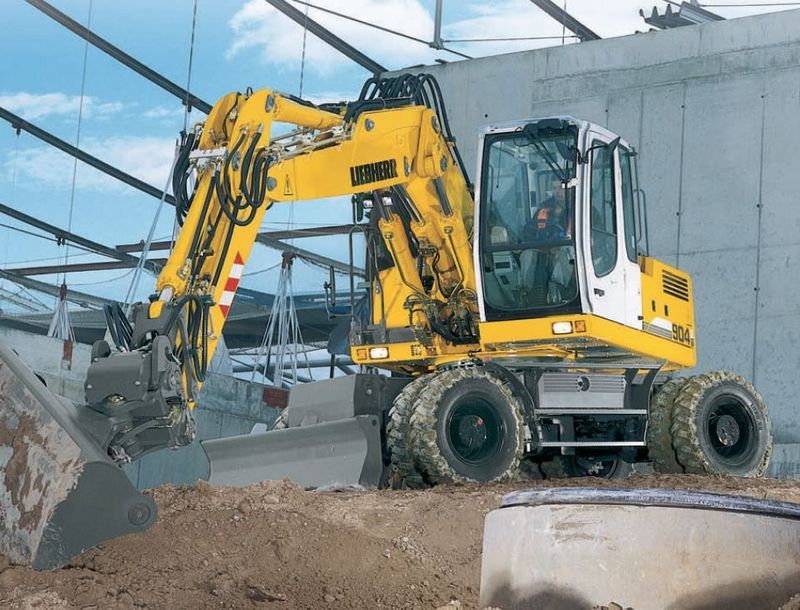

Liebherr A904CHD
Browse All Liebherr or Material Handler Models
Contents:
Boom/Stick Option (Mat) 1
| Max Height | 39.38 ft in (12000 mm) |
| Max Reach Along Ground | 33.8 ft in (10300 mm) |
| Max Depth | 7.22 ft in (2200 mm) |
| Boom/Stick Option (Mat) 1 | 6.6m boom / 4m stick |
Boom/Stick Option (Mat) 2
| Max Height | 42.66 ft in (13000 mm) |
| Max Reach Along Ground | 37.08 ft in (11300 mm) |
| Max Depth | 10.5 ft in (3200 mm) |
| Boom/Stick Option (Mat) 2 | 6.6m boom / 5m stick |
Boom/Stick Option (Mat) 3
| Max Height | 31.83 ft in (9700 mm) |
| Max Reach Along Ground | 37.73 ft in (11500 mm) |
| Max Depth | 16.08 ft in (4900 mm) |
| Boom/Stick Option (Mat) 3 | 6.6m boom / 4m stick and grapple model 65 |
Dimensions
| Ground Clearance | 1.17 ft in (355 mm) |
| Shipping Length | 31.5 ft in (9600 mm) |
| Undercarriage Width | 9.03 ft in (2750 mm) |
| Shipping Height | 10.62 ft in (3235 mm) |
| Upperstructure Clearance | 4.3 ft in (1310 mm) |
Wheel Undercarriage
| Wheelbase | 9.19 ft in (2800 mm) |
| Width W/ Stabilizers On Ground | 13.95 ft in (4250 mm) |
| Tire Size | 10.00-20 |
Engine
| Engine Make | 2245 |
| Engine Model | D 934 S |
| Gross Power | 143 hp (105 kw) |
| Displacement | 390.6 cu in (6.4 L) |
| Aspiration | turbo-charged and after-cooled reduced emissions |
Operational
| Operating Weight W/O Attachment | 53800 lb (24403.3 kg) |
| Fuel Capacity | 92.5 gal (350 L) |
| Hydraulic System Fluid Capacity | 46.3 gal (175 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
Swing Mechanism
| Swing Torque | lb ft (46 Nm) |
| Swing Speed | 9 rpm |
Transmission
| Max Speed | 12.5 mph (20 km/h) |
Hydraulic
| Pump Type | Liebherr variable displacement swashplate double pump |
| Pump Capacity | 50 gal/min (189 L/min) |
