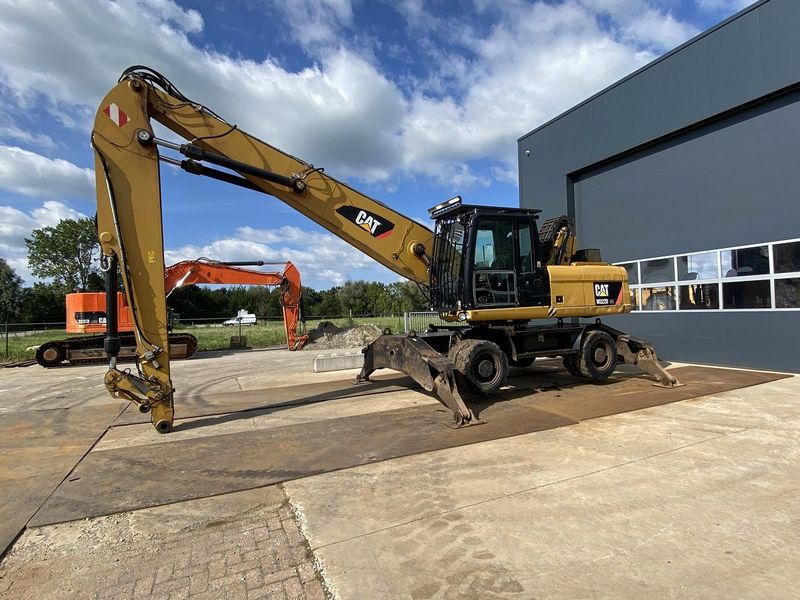

Caterpillar M322D MH
Browse All Caterpillar or Material Handler Models
Contents:
Boom/Stick Option (Mat) 1
| Max Height | 41.02 ft in (12500 mm) |
| Max Reach Along Ground | 35.5 ft in (10820 mm) |
| Max Depth | 6.3 ft in (1920 mm) |
| Boom/Stick Option (Mat) 1 | Boom 6.8m w / drop nose 4.9m |
Boom/Stick Option (Mat) 2
| Max Height | 43.64 ft in (13300 mm) |
| Max Reach Along Ground | 39.54 ft in (12050 mm) |
| Max Depth | 9.59 ft in (2920 mm) |
| Boom/Stick Option (Mat) 2 | Boom 6.8m w / drop nose 5.9m |
Boom/Stick Option (Mat) 3
| Max Height | 40.79 ft in (12430 mm) |
| Max Reach Along Ground | 37.01 ft in (11280 mm) |
| Max Depth | 5.98 ft in (1820 mm) |
| Boom/Stick Option (Mat) 3 | Boom 6.8m w / stick 4.8m |
Dimensions
| Ground Clearance | 1.07 ft in (325 mm) |
| Shipping Length | 49.7 ft in (15148.56 mm) |
| Undercarriage Width | 9.81 ft in (2987.04 mm) |
| Shipping Height | 11 ft in (3350 mm) |
| Height To Top Of Cab - Fixed Riser | 10.63 ft in (3240 mm) |
| Height To Top Of Cab - Hydraulic Riser Raised | 18.51 ft in (5640 mm) |
| Upperstructure Clearance | 4.3 ft in (1310 mm) |
| Shipping Height - Cab Tipped | 11.2 ft in (3.42 m) |
| Wheel Base | 9 ft in (2.75 m) |
| Counterweight Clearance | 4.3 ft in (1310.65 mm) |
| Tail Swing Radius | 9.25 ft in (2819.4 mm) |
| Shipping Width | 9.81 ft in (2987.04 mm) |
Undercarriage
| Ground Clearance | 1.25 ft in (381 mm) |
| Maximum Steering Angle | 35 degrees |
| End Of Va Boom | 25.5 ft in (7.78 m) |
| Oscillation Axle Angle | 6 degrees |
| End Of One-Piece Boom | 30.5 ft in (9.3 m) |
| Minimum Turning Radius - Standard Axle - Outside Of Tire | 22.3 ft in (6.8 m) |
| Outside Of Tire | 22 ft in (6.71 m) |
| Minimum Turning Radius - Standard Axle - End Of Va Boom | 25.6 ft in (7.81 m) |
| Minimum Turning Radius - Standard Axle - End Of One-Piece Boom | 30.5 ft in (9.3 m) |
Wheel Undercarriage
| Wheelbase | 9.03 ft in (2750 mm) |
| Width W/ Stabilizers On Ground | 13 ft in (3960 mm) |
| Steering Angle | 35 degrees |
| Axel Oscillation | 6 degrees |
Engine
| Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | C6.6 ACERT |
| Gross Power | 173 hp (129.1 kw) |
| Net Power | 165 hp (123.1 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 403 cu in (6.7 L) |
| Bore | 4 in (101.6 mm) |
| Stroke | 5 in (127 mm) |
| Net Power - Iso 9249 | 165 hp (123.1 kw) |
| Engine Model | Cat C6.6 ACERT |
| Net Power - Eec 80/1269 | 165 hp (123.1 kw) |
| Eec 80/1269 | 165 hp (123.1 kw) |
| Iso 9249 | 165 hp (123.1 kw) |
| Maximum Torque - 1,400 Rpm | 553 lb ft (749.8 Nm) |
| Ratings | 2000 rpm |
Operational
| Operating Weight W/O Attachment | 51918.9 lb (23550 kg) |
| Fuel Capacity | 101.8 gal (385 L) |
| Cooling System Fluid Capacity | 8.8 gal (33 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Hydraulic System Fluid Capacity | 88.5 gal (335 L) |
Swing Mechanism
| Swing Torque | 41525 lb ft (56300.4 Nm) |
| Swing Speed | 9 rpm |
Transmission
| Drawbar Pull | 27202 lb (12338.7 kg) |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed | 15.6 mph (25 km/h) |
| Creeper Speed - 2nd Gear | 6.8 mph (11 km/h) |
| Maximum Travel Speed | 16 mph (25.8 km/h) |
| Forward/Reverse - 1st Gear | 4.7 mph (7.6 km/h) |
| Creeper Speed - 1st Gear | 2 mph (3.3 km/h) |
| Forward/Reverse - 2nd Gear | 16 mph (25.8 km/h) |
| Maximum Gradeability | 52% |
Weights
| Counterweight | 11905 lb (5400.1 kg) |
| Counterweights - Standard | 9700 lb (4399.9 kg) |
| Counterweights - Optional | 11905 lb (5400.1 kg) |
| Mh Push Blade | 1488 lb (675 kg) |
| Mh Boom - Rear Dozer Only | 44974 lb (20399.9 kg) |
| Mh Boom - Rear Dozer, Front Outriggers | 47620 lb (21600.1 kg) |
| Mh Boom - Front And Rear Outriggers | 48171 lb (21850 kg) |
| Mh Boom - Front And Rear Outriggers - With Mh Undercarriage | 50486 lb (22900.1 kg) |
| Mh Boom - Front And Rear Outriggers - With Mh Undercarriage And Push Blade | 52029 lb (23600 kg) |
| Va Boom - Front And Rear Outriggers - With Mh Undercarriage | 51147 lb (23199.9 kg) |
| Va Boom - Front And Rear Outriggers - With Mh Undercarriage And Push Blade | 52690 lb (23899.8 kg) |
| One-Piece Boom - Rear Dozer Only | 44203 lb (20050.2 kg) |
| One-Piece Boom - Front And Rear Outriggers - With Mh Undercarriage | 49714 lb (22549.9 kg) |
| One-Piece Boom - Front And Rear Outriggers - With Mh Undercarriage And Push Blade | 51257 lb (23249.8 kg) |
| Sticks - Mh Straight | 2425 lb (1100 kg) |
| Sticks - Digging Short | 1433 lb (650 kg) |
| Sticks - Digging Medium | 1543 lb (699.9 kg) |
| Sticks - Digging Long | 1720 lb (780.2 kg) |
| Mh Push Blade - With Mh Undercarriage | 1488 lb (675 kg) |
| Sticks - Mh Drop Nose Long | 2381 lb (1080.1 kg) |
| Sticks - Mh Drop Nose Short | 2006 lb (910 kg) |
| Dozer Blade | 2029 lb (920.4 kg) |
| Outriggers | 2778 lb (1260.1 kg) |
| Va Boom - Rear Dozer Only | 45636 lb (20700.2 kg) |
| Va Boom - Front And Rear Outriggers | 48832 lb (22149.9 kg) |
| One-Piece Boom - Rear Dozer, Front Outriggers | 46848 lb (21249.9 kg) |
| One-Piece Boom - Front And Rear Outriggers | 47399 lb (21499.9 kg) |
| Va Boom - Rear Dozer, Front Outriggers | 48281 lb (21899.9 kg) |
| Rear - Dozer Only (1) | 50486 lb (22900.1 kg) |
| Front And Rear Outriggers (1) | 52580 lb (23849.9 kg) |
| Rear - Dozer, Front Outriggers (2) | 51809 lb (23500.2 kg) |
| Rear - Dozer, Front Outriggers (1) | 53131 lb (24099.9 kg) |
| Rear - Dozer Only (2) | 49714 lb (22549.9 kg) |
| Front And Rear Outriggers (2) | 53903 lb (24450 kg) |
| Rear - Dozer Only (3) | 49163 lb (22300 kg) |
| Rear - Dozer, Front Outriggers (3) | 52360 lb (23750.1 kg) |
| Front And Rear Outriggers (3) | 53131 lb (24099.9 kg) |
| 2.2 M (7'3") Digging Stick | 1433 lb (650 kg) |
| 2.5 M (8'3") Digging Stick | 1543 lb (699.9 kg) |
| Mh Undercarriage - 4 Welded Outriggers (3) | 52250 lb (23700.3 kg) |
| Mh Undercarriage - 4 Welded Outriggers, Push Blade (2) | 53738 lb (24375.2 kg) |
| Mh Undercarriage - 4 Welded Outriggers (2) | 53021 lb (24050 kg) |
| Mh Undercarriage - 4 Welded Outriggers, Push Blade (3) | 54509 lb (24724.9 kg) |
| Mh Undercarriage - 4 Welded Outriggers (1) | 51698 lb (23449.9 kg) |
| Mh Undercarriage - 4 Welded Outriggers, Push Blade (1) | 53187 lb (24125.3 kg) |
| 2.9 M (9' 6") Digging Stick | 1720 lb (780.2 kg) |
| 4.8 M (15' 8") Mh Straight Stick | 2425 lb (1100 kg) |
| 4.9 M (16' 1") Mh Drop Nose Stick | 2006 lb (910 kg) |
| 5.9 M (19' 4") Mh Drop Nose Stick | 2381 lb (1080.1 kg) |
Hydraulic System
| System | 92 gal (US) |
Hydraulic
| Pump Capacity | 92.5 gal/min (350 L/min) |
| Relief Pressure | 5076 psi (34997.8 kPa) |
Hydraulic System
| Travel Circuit | 5076 psi |
| Normal | 5076 psi |
| Tank Capacity | 59 gal (223.4 L) |
| Maximum Pressure - Auxiliary Circuit - High Pressure | 5076 psi |
| Maximum Pressure - Implement Circuit - Normal | 5076 psi |
| Maximum Pressure - Implement Circuit - Heavy Lift | 5439 psi |
| Maximum Pressure - Auxiliary Circuit - Medium Pressure | 2901 psi |
| Maximum Pressure - Travel Circuit | 5076 psi |
| Maximum Flow - Implement/Travel Circuit | 92 gal/min |
| Maximum Flow - Swing Mechanism | 30 gal/min |
| Maximum Flow - Auxiliary Circuit - High Pressure | 66 gal/min |
| Maximum Flow - Auxiliary Circuit - Medium Pressure | 13 gal/min |
| Maximum Pressure - Swing Mechanism | 4931 psi |
| Implement/Travel Circuit | 92 gal/min |
| Heavy Lift | 5439 psi |
| High Pressure (1) | 5076 psi |
| Medium Pressure (2) | 13 gal/min |
| High Pressure (2) | 66 gal/min |
| Swing Mechanism (2) | 30 gal/min |
| Swing Mechanism (1) | 4931 psi |
| Medium Pressure (1) | 2900 psi |
Operating Specifications
| Maximum Reach | 37.5 ft |
Service Refill Capacities
| Cooling System | 8.7 gal (33 L) |
| Fuel Tank | 101 gal (382.4 L) |
| Final Drive - Each | 0.7 gal (2.5 L) |
| Hydraulic Tank | 58 gal (219.6 L) |
| Hydraulic System - Including Tank | 88 gal (333.2 L) |
| Engine Crankcase | 4 gal (15.2 L) |
| Fuel Tank Capacity | 102 gal (386.2 L) |
| Engine Crankcase - With Filter | 4 gal (15.2 L) |
| Final Drive | 0.7 gal (2.7 L) |
| Powershift Transmission | 0.7 gal (2.5 L) |
| Front Steering Axle - Differential | 2.9 gal (11 L) |
| Rear Axle - Housing (Differential) | 3.7 gal (14.1 L) |
| Cooling | 9.8 gal (37.1 L) |
| Rear Axle | 3.8 gal (14.4 L) |
| Front Steering Axle | 3 gal (11.4 L) |
Sound
| Performance | ANSI/SAE J1166 OCT 98 |
| Interior Sound | 72 db(A) |
| Exterior Sound | 103 db(A) |
Standards
| Brakes | SAE J1026 APR 90 |
| Cab/Fogs | ISO 10262 |
Cab/Fogs
| Standards | Standards |
Sound Levels
| Exterior Sound | Exterior Sound |
Tire Options
| Optional Tires | 10.00-20 (dual solid rubber); 11.00-20 (dual pneumatic) |
Working Ranges
| Maximum Reach - Stick Pin | 40.9 ft in (12.5 m) |
| Maximum Height - Stick Pin | 43.6 ft in (13.3 m) |
