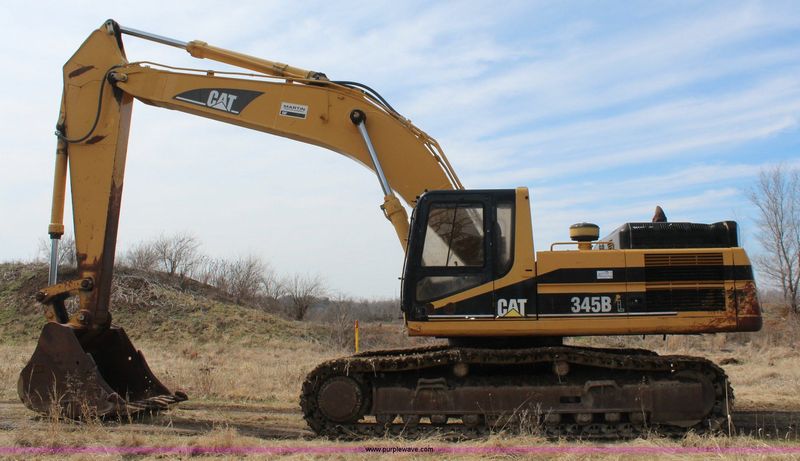

Caterpillar 345B L MH
Browse All Caterpillar or Material Handler Models
Contents:
Boom/Stick Option (Mat) 1
| Max Height | 53.68 ft in (16360 mm) |
| Max Reach Along Ground | 53.97 ft in (16450 mm) |
| Max Depth | 27.63 ft in (8420 mm) |
| Boom/Stick Option (Mat) 1 | Boom 9770mm / Stick 7800mm |
Dimensions
| Ground Clearance | 2.33 ft in (710 mm) |
| Shipping Length | 44.46 ft in (13550 mm) |
| Undercarriage Width | 14.18 ft in (4320 mm) |
| Shipping Height | 14.21 ft in (4330 mm) |
| Height To Top Of Cab - Fixed Riser | 15.95 ft in (4860 mm) |
| Upperstructure Clearance | 4.89 ft in (1490 mm) |
| Tail Swing Radius | 11.98 ft in (3650 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3176C ATAAC |
| Gross Power | 345 hp (257.3 kw) |
| Net Power | 321 hp (239.4 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 628.6 cu in (10.3 L) |
Operational
| Operating Weight W/O Attachment | 113207.4 lb (51350 kg) |
| Fuel Capacity | 190.3 gal (720 L) |
| Cooling System Fluid Capacity | 17.5 gal (66 L) |
| Engine Oil Capacity | 8 gal (30 L) |
| Hydraulic System Fluid Capacity | 137.4 gal (520 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
Swing Mechanism
| Swing Speed | 8.6 rpm |
| Swing Torque | 109896.8 lb ft (149000 Nm) |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed | 2.8 mph (4.4 km/h) |
Track Undercarriage
| Shoe Size | 23.7 in (600 mm) |
| Track Gauge | 12.3 ft in (3720 mm) |
| Length Of Track On Ground | 14.3 ft in (4340 mm) |
Hydraulic
| Pump Capacity | 190.3 gal/min (720 L/min) |
| Relief Pressure | 4977.7 psi (34320 kPa) |
