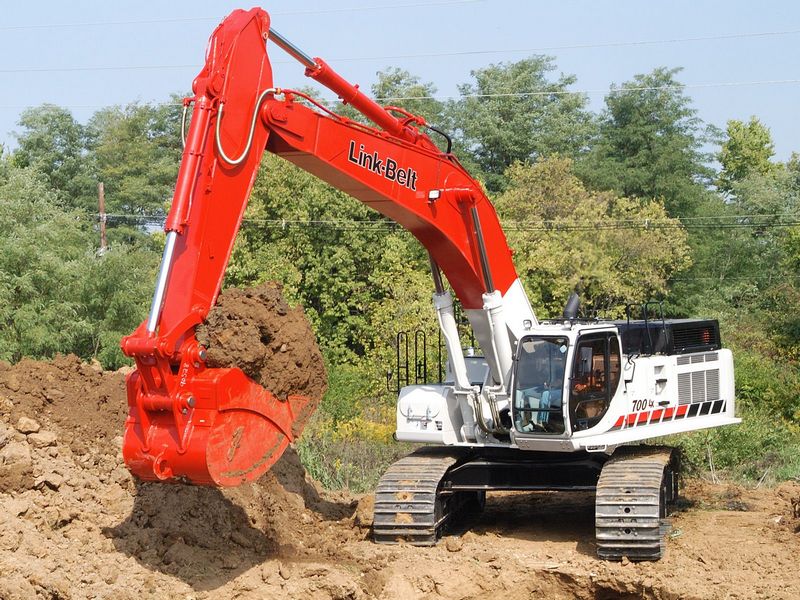

Link-Belt 700LX
Browse All Link-Belt or Material Handler Models
Contents:
Boom/Stick Option (Mat) 1
| Max Height | 60 ft in (18288 mm) |
| Max Reach Along Ground | 54 ft in (16459.2 mm) |
| Max Depth | 20 ft in (6096 mm) |
| Boom/Stick Option (Mat) 1 | 55'0" (16760mm) 2 Piece boom |
Dimensions
| Ground Clearance | 2.71 ft in (825 mm) |
| Shipping Length | 44.1 ft in (13440 mm) |
| Undercarriage Width | 13.62 ft in (4150 mm) |
| Shipping Height | 14.11 ft in (4300 mm) |
| Upperstructure Clearance | 4.96 ft in (1510 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AH-6WG1X-S |
| Net Power | 425 hp (317 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 958 cu in (15.7 L) |
| Aspiration | Turbocharged with Intercooler |
Operational
| Operating Weight W/O Attachment | 147880 lb (67077.3 kg) |
| Fuel Capacity | 237.8 gal (900 L) |
| Cooling System Fluid Capacity | 29.6 gal (112 L) |
| Engine Oil Capacity | 13.8 gal (52 L) |
| Hydraulic System Fluid Capacity | 171.8 gal (650 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
Swing Mechanism
| Swing Speed | 177752 rpm |
| Swing Torque | 6.5 lb ft (8.9 Nm) |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed | 2.5 mph (4.1 km/h) |
Track Undercarriage
| Shoe Size | 35.5 in (900 mm) |
| Track Gauge | 10.7 ft in (3250 mm) |
| Number Of Shoes Per Side | 47 |
| Number Of Track Rollers Per Side | 8 |
| Length Of Track On Ground | 15.5 ft in (4700 mm) |
Hydraulic
| Pump Type | 2x Piston Pumps |
| Pump Capacity | 232.4 gal/min (879.8 L/min) |
| Relief Pressure | 4978 psi (34322.1 kPa) |
