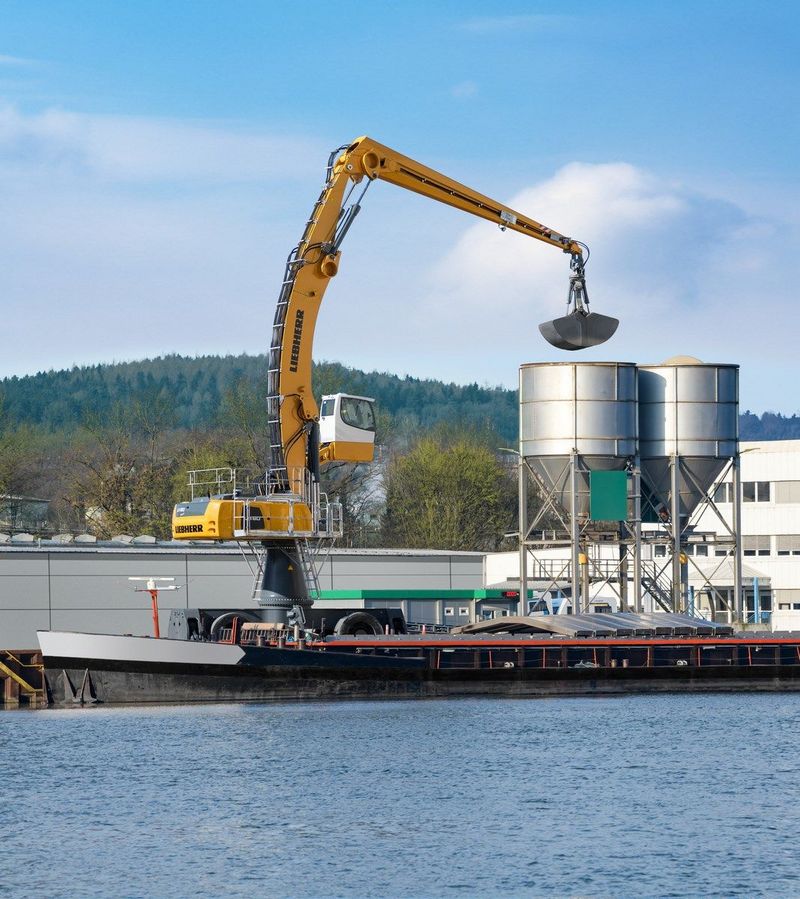

Liebherr LH80M HR-1 PORT LITRONIC
Browse All Liebherr or Material Handler Models
Contents:
Dimensions
| Wheelbase | 11.82 ft in (3600 mm) |
| Ground Clearance | 18.9 in (480 mm) |
| Undercarriage Width | 15.73 ft in (4792 mm) |
| Height To Top Of Cab | 144.45 in (3669 mm) |
| Upper Structure Ground Clearance | 6.57 ft in (2001 mm) |
Engine
| Battery | 2 x 180 Ah / 12 V |
| Engine Model | Liebherr D946 |
| Air Cleaner | Dry-type air cleaner with pre-cleaner, primary and safety elements |
| Net Power | 313 hp (233.5 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 729.3 cu in (12 L) |
| Bore | 5.2 in (130 mm) |
| Stroke | 6 in (150 mm) |
| Alternator | 140 amps |
Operational
| Urea Tank | 17.2 gal (65 L) |
| Fuel Capacity | 174.4 gal (660 L) |
| Hydraulic Fluid Capacity | 89.9 gal (340 L) |
| Hydraulic System Fluid Capacity | 240.4 gal (910 L) |
| Operating Voltage | 24 V |
Swing Mechanism
| Swing Speed | 6.5 rpm |
| Swing Torque | 10399.7 lb ft (14100 Nm) |
Hydraulic
| Pump Type | 2 circuit Liebherr-Synchron-Comfort-system (LSC) with electronic engine speed sensing regulation, pressure and flow compensation, automatic oil flow optimizer |
| Pump Capacity | 194 gal/min (734 L/min) |
| Relief Pressure | 5076.4 psi (35000 kPa) |
Brakes
| Service Brake | Two circuit travel brake system with accumulator; wet and backlash-free disc brake |
