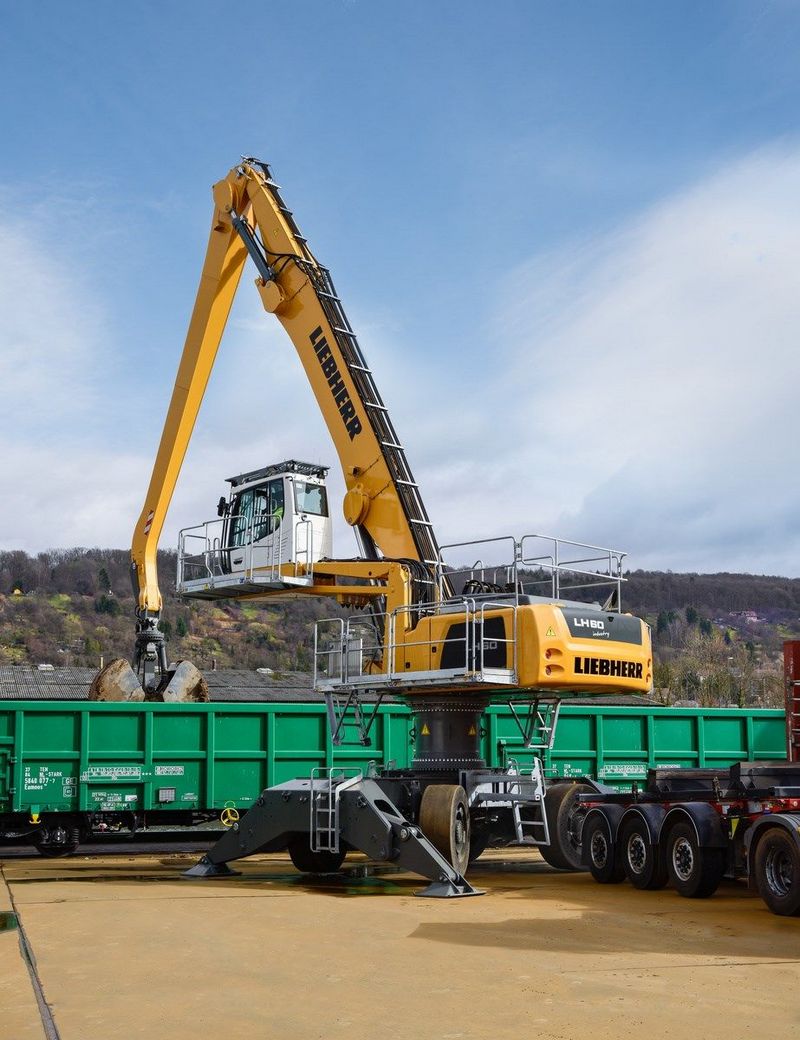

Liebherr LH60M HIGH RISE INDUSTRY LITRONIC
Browse All Liebherr or Material Handler Models
Contents:
Dimensions
| Wheelbase | 11.1 ft in (3383.28 mm) |
| Ground Clearance | 21.1 in (535.95 mm) |
| Undercarriage Width | 12.6 ft in (3840.48 mm) |
| Height To Top Of Cab | 22 in (558.8 mm) |
| Upper Structure Ground Clearance | 13.6 ft in (4145.28 mm) |
Engine
| Emission Tier Level | Tier 4f |
| Battery | 2 |
| Number Of Cylinders | 4 |
| Engine Model | D944 |
| Gross Power | 255 hp (190.2 kw) |
| Air Cleaner | dry-type air cleaner with pre-cleaner, primary and safety elements |
| Net Power | 258 hp (192.4 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 2606752 cu in (42717 L) |
| Bore | 5.1 in (129.6 mm) |
| Stroke | 5.9 in (149.9 mm) |
| Alternator | 140 amps |
Operational
| Urea Tank | 17 gal (64.4 L) |
| Fuel Capacity | 136.8 gal (517.9 L) |
| Hydraulic Fluid Capacity | 70 gal (265 L) |
| Hydraulic System Fluid Capacity | 235 gal (889.6 L) |
Swing Mechanism
| Swing Torque | 87032 lb ft (117999.6 Nm) |
| Swing Speed | 8 rpm |
Hydraulic
| Pump Type | 2 Liebherr axial piston variable displacement pumps |
| Pump Capacity | 160 gal/min (605.7 L/min) |
| Relief Pressure | 5067 psi (34935.8 kPa) |
Brakes
| Axles | 154324 lb (70000.2 kg) |
| Service Brake | disc brake |
