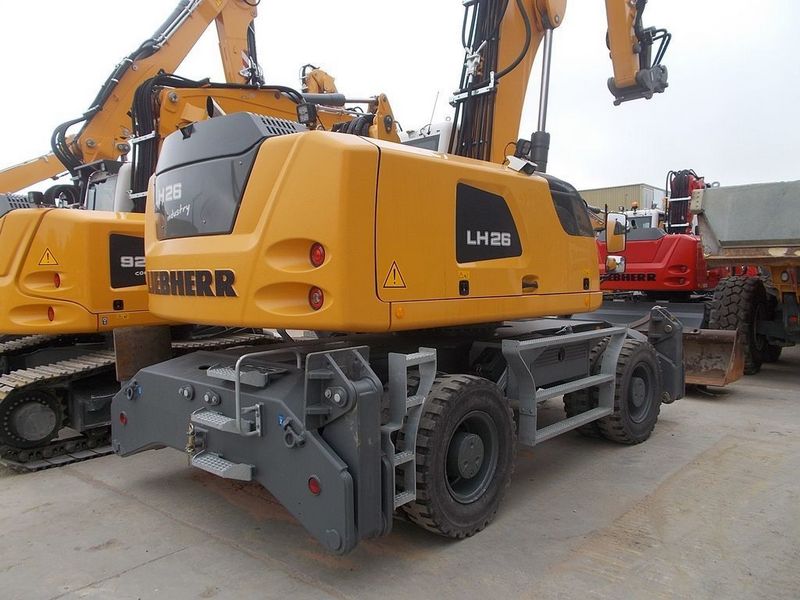

Liebherr LH26M INDUSTRY LITRONIC
Browse All Liebherr or Material Handler Models
Contents:
Engine
| Emission Tier Level | Tier 4f |
| Battery | 2 |
| Engine Model | D924 |
| Gross Power | 154 hp (114.9 kw) |
| Air Cleaner | dry-type air cleaner with pre-cleaner, primary and safety elements |
| Net Power | 156 hp (116.4 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 16757.8 cu in (274.7 L) |
| Bore | 4.1 in (104.2 mm) |
| Stroke | 5.2 in (132.1 mm) |
| Alternator | 140 amps |
Operational
| Urea Tank | 12 gal (45.5 L) |
| Fuel Capacity | 98 gal (371 L) |
| Hydraulic Fluid Capacity | 41 gal (155.3 L) |
| Hydraulic System Fluid Capacity | 93 gal (352.1 L) |
Swing Mechanism
| Swing Torque | 39091 lb ft (53000.3 Nm) |
Hydraulic
| Pump Type | Liebherr axial piston variable displacement pump |
| Pump Capacity | 103 gal/min (389.9 L/min) |
| Relief Pressure | 5076 psi (34997.8 kPa) |
Brakes
| Axles | 88185 lb (40000.1 kg) |
| Service Brake | wet and backlash-free disc brake |
