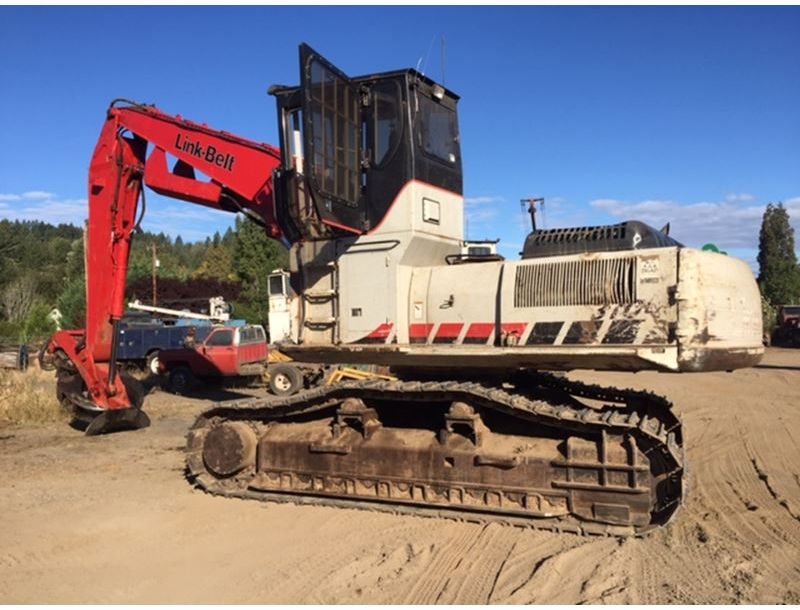

Link-Belt 370LX
Browse All Link-Belt or Log Loader Models
Contents:
Boom/Stick Option (Lgl) 1
| Shipping Length | 54.22 ft in (16524 mm) |
| Shipping Height | 11.47 ft in (3496 mm) |
| Max Height | 50 ft in (15240 mm) |
| Max Reach At Ground Level | 44 ft in (13411.2 m) |
| Max Depth Below Ground | 15 ft in (4572 mm) |
| Boom/Stick Option (Lgl) 1 | 44'0" (13400mm) Loading Arm |
Dimensions
| Overall Width | 11.95 ft in (3640 mm) |
| Length Of Track On Ground | 14.34 ft in (4370 mm) |
| Ground Clearance | 2.39 ft in (726 mm) |
| Tail Swing Radius | 11.46 ft in (3490 mm) |
Undercarriage
| Track Gauge | 9.65 ft in (2940 mm) |
| Shoe Size | 27.56 in (700 mm) |
| Max Speed | 2.6 mph (4.19 km/h) |
| Ground Pressure | 10.43 psi (71.92 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AA-6HK1XQB |
| Net Power | 247 hp (184.2 kw) |
| Net Torque | 687 lb ft (931.5 Nm) |
| Power Measured @ | 2000 rpm |
| Displacement | 475 cu in (7.8 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged with Intercooler |
Operational
| Operating Weight | 107231 lb (48639.2 kg) |
| Fuel Capacity | 153.3 gal (580 L) |
| Cooling System Fluid Capacity | 11.1 gal (42 L) |
| Engine Oil Capacity | 8.8 gal (33 L) |
| Hydraulic System Fluid Capacity | 92.5 gal (350 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
Swing Mechanism
| Swing Speed | 8.1 rpm |
| Swing Torque | 112110 lb ft (152000.8 Nm) |
Hydraulic
| Pump Type | 2x Piston Pumps |
| Pump Flow Capacity | 150 gal/min (567.9 L/min) |
| Relief Valve Pressure | 4970 psi (34267 kPa) |
