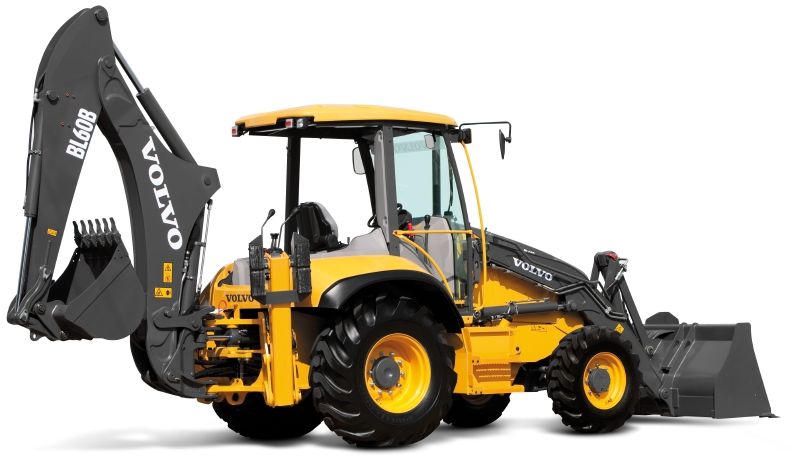

Volvo BL60B
Browse All Volvo or Loader Backhoe Models
Contents:
Dimensions
| Transport Length | 23.79 ft in (7250 mm) |
| Transport Width | 7.71 ft in (2350 mm) |
| Transport Height | 12.31 ft in (3750 mm) |
| Wheelbase | 7.22 ft in (2200 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Height To Top Of Suspended Cab | 9.52 ft in (2900 mm) |
Loader
| Bucket Width | 24.61 in (625 mm) |
| Bucket Capacity | 0.25 yd3 (0.19 m3) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2244 |
| Engine Model | D3.8H |
| Bore | 4 in (100 mm) |
| Stroke | 4.8 in (120 mm) |
Operational
| Operating Weight 2wd | 15587 lb (7070.2 kg) |
| Fuel Capacity | 39.7 gal (150 L) |
| Operating Weight 4wd | 20349 lb (9230.2 kg) |
| Hydraulic System Fluid Capacity | 12.7 gal (48 L) |
| Oil System Fluid Capacity | 3.5 gal (13.2 L) |
| Cooling System Fluid Capacity | 0.5 gal (1.6 L) |
| Transmission Fluid Capacity | 5.6 gal (21 L) |
| Tire Size Front - 2wd / 4wd | 12Lx16.5, 10PR |
| Rear Tires Size 2wd/4wd | 19.5Lx24, 10PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
