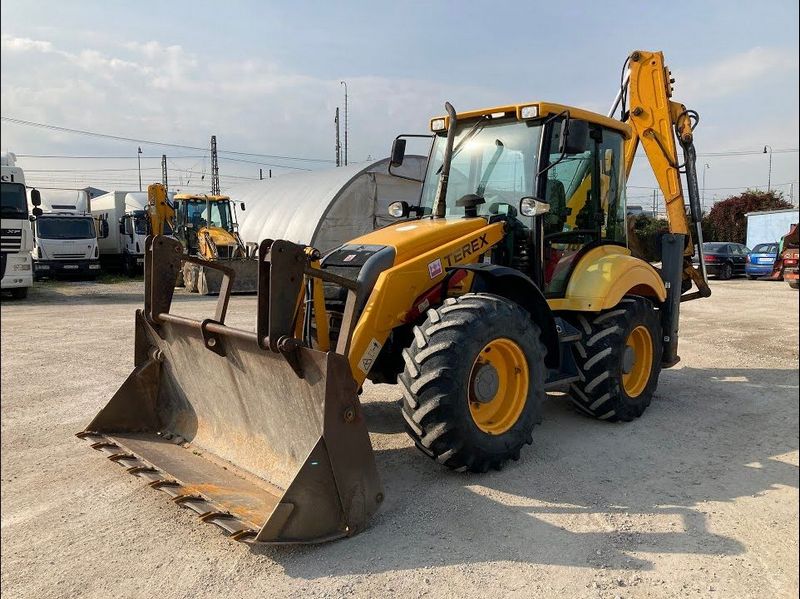

Terex 980 Elite
Browse All Terex or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.79 ft in (3593 mm) |
| Reach From Swivel - Std | 18.79 ft in (5725 mm) |
| Dig Depth - Std | 14.54 ft in (4431 mm) |
| Reach At Load Height - Std | 6.55 ft in (1996 mm) |
| Bucket Dig Force - Std | 11596.32 lb (5260 kg) |
| Bucket Dig Force - Ext | 11596.32 lb (5260 kg) |
| Reach From Swivel - Ext | 23.02 ft in (7016 mm) |
| Dig Depth - Ext | 18.95 ft in (5775 mm) |
| Reach At Load Height - Ext | 9.6 ft in (2924 mm) |
| Load Height - Ext | 15 ft in (4571 mm) |
Dimensions
| Transport Length | 24.04 ft in (7325 mm) |
| Transport Width | 7.84 ft in (2387 mm) |
| Transport Height | 12.48 ft in (3802 mm) |
| Wheelbase | 6.86 ft in (2090 mm) |
| Ground Clearance | 1.52 ft in (463 mm) |
| Height To Top Of Suspended Cab | 9.22 ft in (2810 mm) |
Loader
| Clearance At Max Dump Height | 8.76 ft in (2669 mm) |
| Reach At Max Dump Height | 2.12 ft in (645 mm) |
| Dig Depth | 4.57 in (116 mm) |
| Lift Capacity At Full Height | 8728.11 lb (3959 kg) |
| Bucket Capacity | 1.57 yd3 (1.2 m3) |
| Bucket Width | 93.98 in (2387 mm) |
| Bucket Breakout Force | 12256 lb (54.52 kN) |
Engine
| Engine Model | 1104C-44T |
| Net Power | 94 hp (70.1 kw) |
| Gross Power | 100 hp (74.6 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 415 lb ft (562.7 Nm) |
| Displacement | 269 cu in (4.5 L) |
Operational
| Fuel Capacity | 34.4 gal (130 L) |
| Max Weight | 16581 lb (7521.1 kg) |
| Hydraulic System Fluid Capacity | 37.8 gal (143 L) |
| Oil System Fluid Capacity | 2.3 gal (8.5 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Transmission Fluid Capacity | 6.1 gal (23 L) |
| Front Axle Fluid Capacity | 3.2 gal (12 L) |
| Rear Axle Fluid Capacity | 3.5 gal (13 L) |
| Turning Radius | 18.8 ft in (5700 mm) |
| Tire Size Front - 2wd / 4wd | 16.9x24 |
| Rear Tires Size 2wd/4wd | 16.9x24 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 75 amps |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 25.9 mph (41.6 km/h) |
| Max Speed Reverse | 8.1 mph (13 km/h) |
Hydraulic
| Pump Type | twin gear |
| Pump Flow Capacity | 42.3 gal/min (160 L/min) |
| Relief Valve Pressure | 3250 psi (22408 kPa) |
