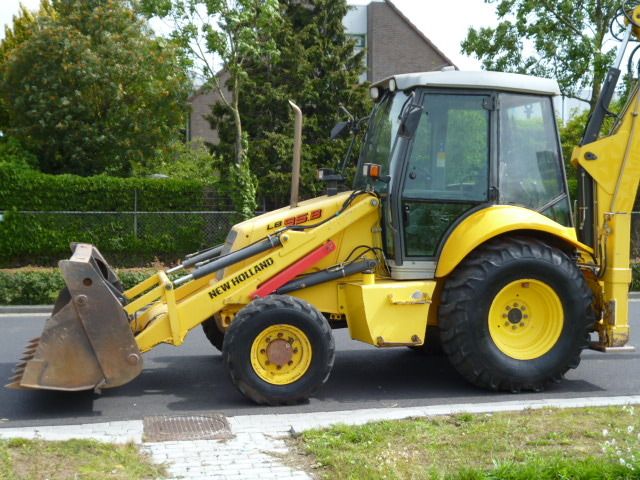

New Holland LB95.B
Browse All New Holland or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 18.97 ft in (5780 mm) |
| Reach From Swivel - Std | 19.26 ft in (5870 mm) |
| Dig Depth - Std | 15.08 ft in (4595 mm) |
| Reach At Load Height - Std | 7.67 ft in (2335 mm) |
| Reach From Swivel - Ext | 22.82 ft in (6955 mm) |
| Dig Depth - Ext | 18.97 ft in (5780 mm) |
| Load Height - Ext | 21.23 ft in (6470 mm) |
| Reach At Load Height - Ext | 10.86 ft in (3310 mm) |
Dimensions
| Transport Length | 18.67 ft in (5690 mm) |
| Transport Width | 7.98 ft in (2430 mm) |
| Transport Height | 12.77 ft in (3890 mm) |
| Wheelbase | 7.14 ft in (2175 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Height To Top Of Suspended Cab | 9.45 ft in (2880 mm) |
Loader
| Clearance At Max Dump Height | 14.7 ft in (4480 mm) |
| Reach At Max Dump Height | 2.32 ft in (705 mm) |
| Dig Depth | 3.94 in (100 mm) |
| Lift Capacity At Full Height | 7826.41 lb (3550 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | CNH F4GE0454C*D |
| Net Power | 95 hp (70.9 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 216.9 lb ft (294 Nm) |
| Aspiration | Turbocharged |
| Displacement | 274.7 cu in (4.5 L) |
Operational
| Fuel Capacity | 35.7 gal (135 L) |
| Max Weight | 18739.3 lb (8500 kg) |
| Hydraulic System Fluid Capacity | 31.2 gal (118 L) |
| Oil System Fluid Capacity | 3.7 gal (14 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Transmission Fluid Capacity | 4.8 gal (18 L) |
| Tire Size Front - 2wd / 4wd | 12.5 / 70 (10 Ply) |
| Rear Tires Size 2wd/4wd | 18.4 / 26 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
Transmission
| Transmission Type | PowerShuttle |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.2 mph (38.9 km/h) |
| Max Speed Reverse | 28.9 mph (46.4 km/h) |
Hydraulic
| Pump Type | Load Sensing / Flow Compensation |
| Pump Flow Capacity | 39.9 gal/min (151 L/min) |
| Relief Valve Pressure | 3045.8 psi (21000 kPa) |
