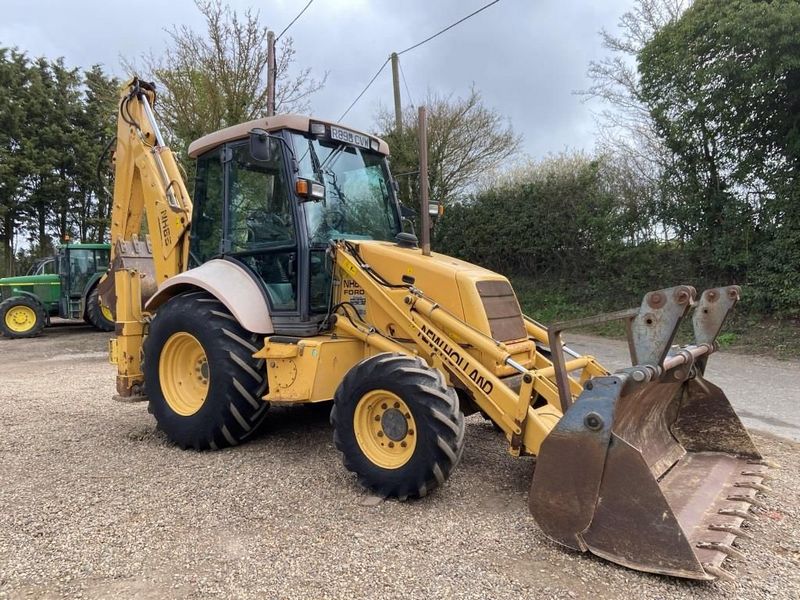

New Holland LB85
Browse All New Holland or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.31 ft in (3750 mm) |
| Reach From Swivel - Std | 18.15 ft in (5530 mm) |
| Dig Depth - Std | 14.67 ft in (4471 mm) |
| Bucket Dig Force - Std | 12652.33 lb (5739 kg) |
| Load At Max Lift - Std | 4629.71 lb (2100 kg) |
Dimensions
| Transport Length | 18.67 ft in (5690 mm) |
| Transport Width | 7.47 ft in (2275 mm) |
| Transport Height | 13 ft in (3960 mm) |
Loader
| Clearance At Max Dump Height | 11.59 ft in (3530 mm) |
| Lift Capacity At Full Height | 7826.42 lb (3550 kg) |
| Bucket Capacity | 1.31 yd3 (1 m3) |
| Bucket Width | 89.57 in (2275 mm) |
| Bucket Breakout Force | _ - (61.74 kN) |
Engine
| Engine Model | NG Genises 450/NB |
| Gross Power | 84.5 hp (63 kw) |
Operational
| Operating Weight 4wd | 16016.6 lb (7265 kg) |
| Hydraulic System Fluid Capacity | 33.9 gal (128 L) |
Transmission
| Transmission Type | power shuttle 2 |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.2 mph (38.9 km/h) |
| Max Speed Reverse | 24.2 mph (38.9 km/h) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 39.9 gal/min (151 L/min) |
| Relief Valve Pressure | 3045.8 psi (21000 kPa) |
