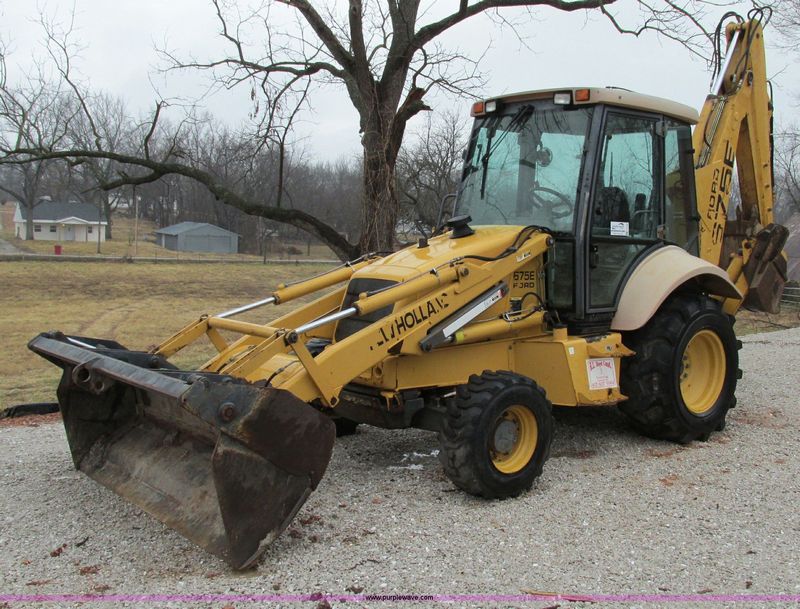

New Holland 675E
Browse All New Holland or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.67 ft in (3860 mm) |
| Reach From Swivel - Std | 19.49 ft in (5940 mm) |
| Dig Depth - Std | 15.49 ft in (4720 mm) |
| Bucket Dig Force - Std | 12200 lb (5533.83 kg) |
| Bucket Dig Force - Ext | 12200 lb (5533.83 kg) |
| Dig Depth - Ext | 19.39 ft in (5910 mm) |
| Reach From Swivel - Ext | 23.07 ft in (7030 mm) |
| Load Height - Ext | 15.06 ft in (4590 mm) |
Dimensions
| Transport Length | 23.56 ft in (7180 mm) |
| Transport Width | 7.42 ft in (2260 mm) |
| Transport Height | 11.32 ft in (3450 mm) |
| Wheelbase | 7.19 ft in (2190 mm) |
| Ground Clearance | 1.58 ft in (480 mm) |
| Height To Top Of Suspended Cab | 9.32 ft in (2840 mm) |
Loader
| Clearance At Max Dump Height | 8.9 ft in (2710 mm) |
| Reach At Max Dump Height | 2.56 ft in (780 mm) |
| Lift Capacity At Full Height | 7195 lb (3263.6 kg) |
| Bucket Width | 88 in (2235.2 mm) |
| Bucket Breakout Force | 12900 lb (57.39 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | New Holland |
| Engine Model | BSD 450 T |
| Gross Power | 100 hp (74.6 kw) |
| Net Power | 98 hp (73.1 kw) |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 304 lb ft (412.2 Nm) |
| Displacement | 305.2 cu in (5 L) |
| Bore | 4.5 in (112 mm) |
| Stroke | 5 in (127 mm) |
Operational
| Operating Weight 2wd | 14341 lb (6505 kg) |
| Operating Weight 4wd | 16314 lb (7400 kg) |
| Fuel Capacity | 28 gal (106 L) |
| Max Weight | 14341 lb (6505 kg) |
| Hydraulic System Fluid Capacity | 36.2 gal (137 L) |
| Oil System Fluid Capacity | 4.5 gal (17 L) |
| Cooling System Fluid Capacity | 6.3 gal (23.8 L) |
| Tire Size Front - 2wd / 4wd | 11L-16 |
| Rear Tires Size 2wd/4wd | 19.5Lx24 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
Transmission
| Transmission Type | Power shuttle |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20.1 mph (32.2 km/h) |
| Max Speed Reverse | 25 mph (40.2 km/h) |
Hydraulic
| Pump Type | Open center |
| Pump Flow Capacity | 38 gal/min (143.9 L/min) |
| Relief Valve Pressure | 2850 psi (19650.1 kPa) |
