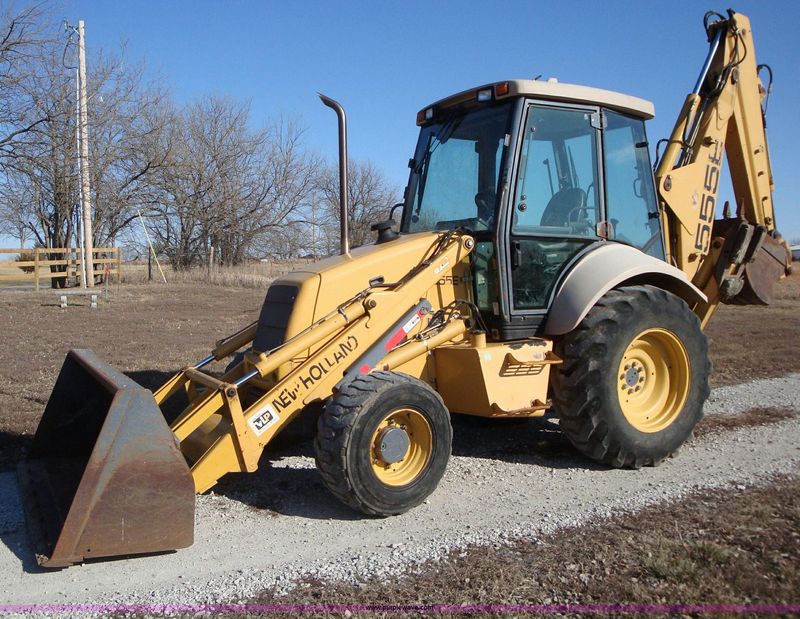

New Holland 555E
Browse All New Holland or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.98 ft in (3650 mm) |
| Reach From Swivel - Std | 18.48 ft in (5630 mm) |
| Dig Depth - Std | 14.41 ft in (4390 mm) |
| Bucket Dig Force - Std | 8070 lb (3660.5 kg) |
Dimensions
| Transport Length | 23.33 ft in (7110 mm) |
| Transport Width | 7.42 ft in (2260 mm) |
| Transport Height | 14.41 ft in (4390 mm) |
| Wheelbase | 7.12 ft in (2170 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
| Front Wheel Tread Width | 73.63 in (1870 mm) |
| Height To Top Of Suspended Cab | 9.32 ft in (2840 mm) |
| Rear Tread Range | 67.72 in (1720 mm) |
Loader
| Clearance At Max Dump Height | 7.12 ft in (2170 mm) |
| Reach At Max Dump Height | 2.56 ft in (780 mm) |
| Lift Capacity At Full Height | 6795 lb (3082.17 kg) |
| Bucket Width | 87.8 in (2230 mm) |
| Bucket Breakout Force | 13250 lb (58.94 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | New Holland |
| Engine Model | BSD 450NA |
| Net Power | 79 hp (59 kw) |
| Gross Power | 83 hp (61.9 kw) |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 213 lb ft (288.8 Nm) |
| Displacement | 305.2 cu in (5 L) |
| Bore | 4.5 in (112 mm) |
| Stroke | 5 in (127 mm) |
Operational
| Operating Weight 2wd | 14241 lb (6459.7 kg) |
| Fuel Capacity | 28 gal (106 L) |
| Operating Weight 4wd | 16005 lb (7259.8 kg) |
| Hydraulic System Fluid Capacity | 36.2 gal (137.1 L) |
| Oil System Fluid Capacity | 4.5 gal (17 L) |
| Cooling System Fluid Capacity | 6.3 gal (23.8 L) |
| Tire Size Front - 2wd / 4wd | 11L-16 / 12-16.5 |
| Rear Tires Size 2wd/4wd | 19.5Lx24 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
Transmission
| Transmission Type | Power shuttle |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20.1 mph (32.2 km/h) |
| Max Speed Reverse | 25 mph (40.2 km/h) |
Hydraulic
| Pump Type | Open center |
| Pump Flow Capacity | 38 gal/min (143.9 L/min) |
| Relief Valve Pressure | 2850 psi (19650.1 kPa) |
