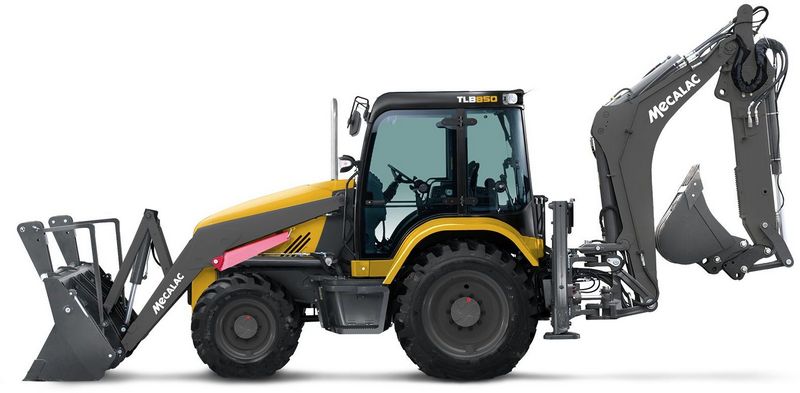

Mecalac TLB850
Browse All Mecalac or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.87 ft in (3615 mm) |
| Reach From Swivel - Std | 18.72 ft in (5703 mm) |
| Dig Depth - Std | 14.35 ft in (4371 mm) |
Dimensions
| Dump Angle | 45 |
| Hinge Pin Height, Maximum Height | 142.33 in (3615 mm) |
| Loading Height (Evw) | 11.06 ft in (3369 mm) |
| Reach @ Ground Level | 4760.5 ft in (1451 m) |
Loader
| Bucket Capacity | 1.31 yd3 (1 m3) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | 1204E–E44TA |
| Gross Power | 93.9 hp (70 kw) |
| Net Power | 88.2 hp (65.7 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 295.1 lb ft (400 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Alternator | 120 amps |
Operational
| Operating Weight | 16137.9 lb (7320 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Hydraulic System Fluid Capacity | 24.4 gal (92 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Front Axle Fluid Capacity | 2.6 gal (9.5 L) |
| Rear Axle Fluid Capacity | 4.1 gal (15.5 L) |
| Operating Voltage | 12 V |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
Hydraulic
| Pump Flow Capacity | 21.2 gal/min (80 L/min) |
| Relief Valve Pressure | 3632 psi (25041.8 kPa) |
