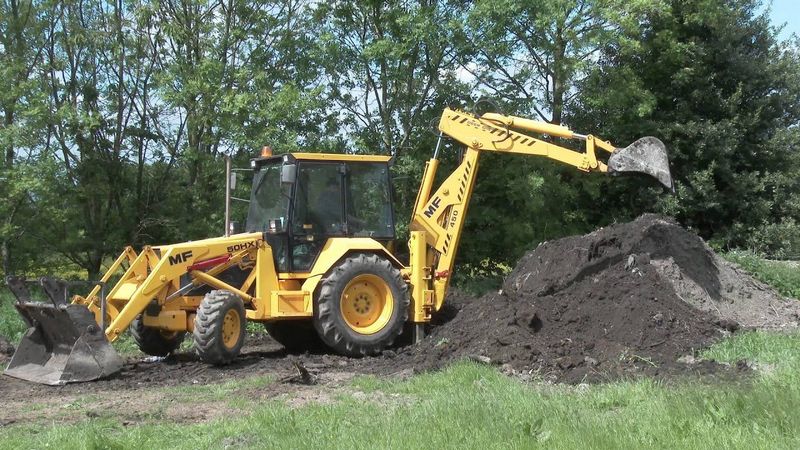

Massey Ferguson 50HX
Browse All Massey Ferguson or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.88 ft in (3620 mm) |
| Reach From Swivel - Std | 18.44 ft in (5620 mm) |
| Bucket Dig Force - Std | 10754.15 lb (4878 kg) |
| Load Height - Ext | 14.28 ft in (4350 mm) |
| Bucket Dig Force - Ext | 10754.15 lb (4878 kg) |
| Reach From Swivel - Ext | 22.45 ft in (6840 mm) |
Dimensions
| Transport Length | 25.37 ft in (7730 mm) |
| Transport Width | 7.32 ft in (2230 mm) |
| Transport Height | 11.65 ft in (3550 mm) |
| Wheelbase | 7.16 ft in (2180 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Height To Top Of Suspended Cab | 9.09 ft in (2770 mm) |
| Rear Tread Range | 68.12 in (1730 mm) |
| Front Wheel Tread Width | 65.75 in (1670 mm) |
Loader
| Clearance At Max Dump Height | 9.03 ft in (2750 mm) |
| Reach At Max Dump Height | 2.33 ft in (710 mm) |
| Bucket Breakout Force | 8838 lb (39.32 kN) |
| Bucket Width | 87.8 in (2230 mm) |
| Lift Capacity At Full Height | 6017 lb (2729.27 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Perkins |
| Engine Model | A4.248 |
| Gross Power | 77 hp (57.5 kw) |
| Power Measured @ | 2000 rpm |
| Torque Measured @ | 1400 rpm |
| Net Max Torque | 211 lb ft (286.1 Nm) |
| Displacement | 250.2 cu in (4.1 L) |
| Bore | 4 in (101 mm) |
| Stroke | 5 in (127 mm) |
Operational
| Fuel Capacity | 21.4 gal (81.1 L) |
| Max Weight | 14303.6 lb (6488 kg) |
| Hydraulic System Fluid Capacity | 19 gal (72 L) |
| Oil System Fluid Capacity | 2.5 gal (9.4 L) |
| Cooling System Fluid Capacity | 4.2 gal (15.8 L) |
| Tire Size Front - 2wd / 4wd | 11L-16 |
| Rear Tires Size 2wd/4wd | 16.9-28 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
Transmission
| Transmission Type | Power shuttle |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 17.6 mph (28.3 km/h) |
| Max Speed Reverse | 17.6 mph (28.3 km/h) |
Hydraulic
| Pump Type | Open center |
| Pump Flow Capacity | 29.5 gal/min (111.7 L/min) |
| Relief Valve Pressure | 2750 psi (18960.6 kPa) |
