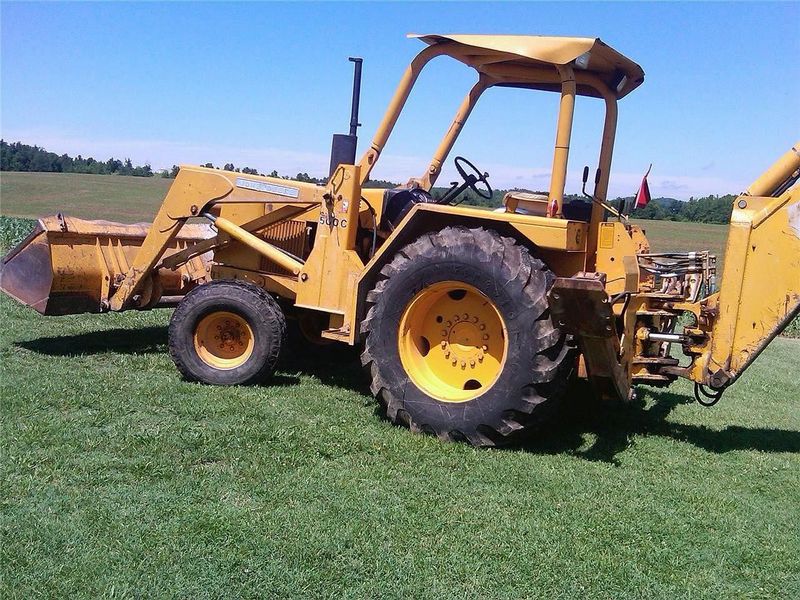

John Deere 500C
Browse All John Deere or Loader Backhoe Models
Contents:
Dimensions
| Transport Length | 24.58 ft in (7490 mm) |
| Transport Width | 6.92 ft in (2130 mm) |
| Transport Height | 11.67 ft in (3560 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 300 Series |
| Net Power | 80 hp (59.7 kw) |
| Power Measured @ | 2500 rpm |
| Torque Measured @ | 1300 rpm |
| Net Max Torque | 202 lb ft (274 Nm) |
| Aspiration | Naturally aspirated |
| Displacement | 270 cu in (4.5 L) |
Operational
| Fuel Capacity | 34 gal (128.7 L) |
| Max Weight | 14180 lb (6431 kg) |
| Hydraulic System Fluid Capacity | 21.5 gal (81.4 L) |
| Cooling System Fluid Capacity | 4.8 gal (18 L) |
| Transmission Fluid Capacity | 21.5 gal (81.4 L) |
| Tire Size Front - 2wd / 4wd | 14.5/75-16.1 10PR F3 |
| Rear Tires Size 2wd/4wd | 18.4-28,8/12PR R4 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 35 amps |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 4 |
Hydraulic
| Pump Type | Close-center |
| Pump Flow Capacity | 28.5 gal/min (2.1 L/min) |
| Relief Valve Pressure | 2400 psi (16550 kPa) |
