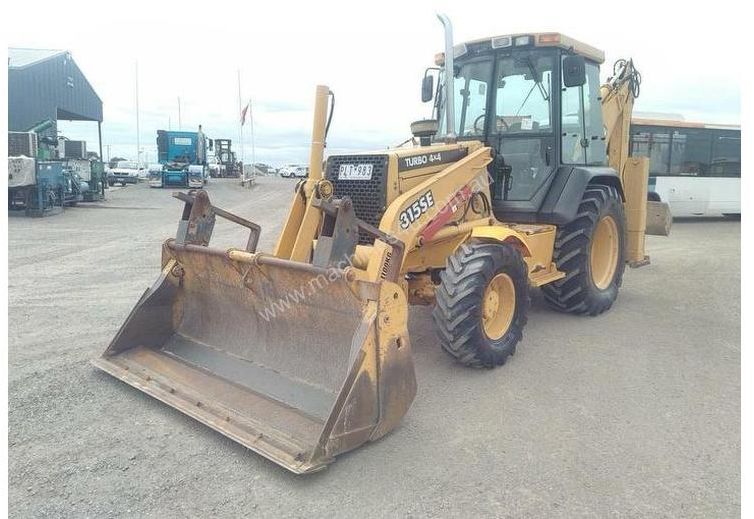

John Deere 315SE
Browse All John Deere or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.67 ft in (3560 mm) |
| Reach From Swivel - Std | 18.08 ft in (5560 mm) |
| Dig Depth - Std | 14.08 ft in (4290 mm) |
| Reach At Load Height - Std | 22.67 ft in (6910 mm) |
| Bucket Dig Force - Std | 11990 lb (5438.58 kg) |
| Bucket Dig Force - Ext | 12158 lb (5514.78 kg) |
| Reach From Swivel - Ext | 21.75 ft in (6630 mm) |
| Dig Depth - Ext | 18 ft in (5490 mm) |
| Reach At Load Height - Ext | 26.33 ft in (8030 mm) |
| Load Height - Ext | 14.25 ft in (4340 mm) |
Dimensions
| Transport Length | 17.26 ft in (5260 mm) |
| Transport Width | 7.62 ft in (2320 mm) |
| Transport Height | 12.05 ft in (3670 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Ground Clearance | 1.15 ft in (350 mm) |
| Height To Top Of Suspended Cab | 9 ft in (2750 mm) |
Loader
| Clearance At Max Dump Height | 8.67 ft in (2640 mm) |
| Reach At Max Dump Height | 2.51 ft in (765 mm) |
| Dig Depth | 8.1 in (206 mm) |
| Lift Capacity At Full Height | 7200 lb (3266 kg) |
| Bucket Capacity | 1.3 yd3 (1 m3) |
| Bucket Width | 92 in (2340 mm) |
| Bucket Breakout Force | 8900 lb (39.6 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045T |
| Gross Power | 88 hp (65.7 kw) |
| Net Power | 80 hp (59.7 kw) |
| Power Measured @ | 2200 rpm |
| Net Torque Rise | 42 % |
| Net Max Torque | 271 lb ft (367.5 Nm) |
| Aspiration | Turbocharged |
| Displacement | 276 cu in (4.6 L) |
Operational
| Fuel Capacity | 36 gal (136 L) |
| Operating Weight 4wd | 580 lb (263 kg) |
| Max Weight | 14700 lb (6670 kg) |
| Hydraulic System Fluid Capacity | 24 gal (91 L) |
| Oil System Fluid Capacity | 2.3 gal (8.5 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Transmission Fluid Capacity | 3.7 gal (14 L) |
| Front Axle Fluid Capacity | 2.3 gal (8.5 L) |
| Rear Axle Fluid Capacity | 3.5 gal (13 L) |
| Turning Radius | 11.8 ft in (3570 mm) |
| Tire Size Front - 2wd / 4wd | 11L-15,8PR F3/12.5/80-18,10PR |
| Rear Tires Size 2wd/4wd | 16.9-24,8PR R4/19.5L-24,8PRR4 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | 4-speed, helical cut gear, collar shift transmission synchronized in all gears with hydraulic reverser |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 25.8 mph (41.5 km/h) |
| Max Speed Reverse | 28.8 mph (46.3 km/h) |
Hydraulic
| Pump Type | Gear, open center |
| Pump Flow Capacity | 36 gal/min (136.3 L/min) |
| Relief Valve Pressure | 3625 psi (25000 kPa) |
