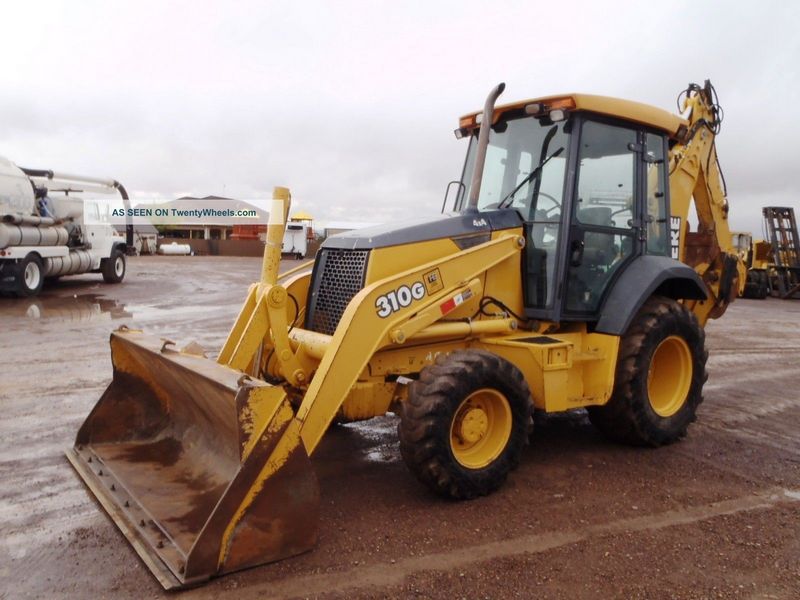

John Deere 310G
Browse All John Deere or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 10.92 ft in (3330 mm) |
| Reach From Swivel - Std | 17.83 ft in (5440 mm) |
| Dig Depth - Std | 14.25 ft in (4340 mm) |
| Load Height - Ext | 13.92 ft in (4240 mm) |
| Dig Depth - Ext | 17.93 ft in (5460 mm) |
| Bucket Dig Force - Std | 11106 lb (5037.6 kg) |
| Reach From Swivel - Ext | 21.42 ft in (6530 mm) |
Dimensions
| Transport Length | 23.25 ft in (7090 mm) |
| Transport Width | 7.16 ft in (2180 mm) |
| Transport Height | 11.16 ft in (3400 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Ground Clearance | 1.01 ft in (305 mm) |
| Height To Top Of Suspended Cab | 9 ft in (2740 mm) |
Loader
| Reach At Max Dump Height | 2.58 ft in (785 mm) |
| Dig Depth | 6.3 in (160 mm) |
| Lift Capacity At Full Height | 6200 lb (2812 kg) |
| Bucket Capacity | 1 yd3 (0.76 m3) |
| Bucket Breakout Force | 8500 lb (38 kN) |
Engine
| Engine Make | 2240 |
| Engine Model | 4045D |
| Gross Power | 78 hp (58.2 kw) |
| Net Power | 73 hp (54.5 kw) |
| Power Measured @ | 2000 rpm |
| Torque Measured @ | 1000 rpm |
| Net Torque Rise | 28 % |
| Net Max Torque | 216 lb ft (292.9 Nm) |
| Aspiration | Naturally Aspirated |
Operational
| Operating Weight 2wd | 12800 lb (5806 kg) |
| Fuel Capacity | 36 gal (136 L) |
| Operating Weight 4wd | 12800 lb (5806 kg) |
| Max Weight | 15090 lb (6845 kg) |
| Hydraulic System Fluid Capacity | 24 gal (91 L) |
| Oil System Fluid Capacity | 2.3 gal (8.5 L) |
| Cooling System Fluid Capacity | 4.3 gal (16 L) |
| Transmission Fluid Capacity | 4 gal (15 L) |
| Front Axle Fluid Capacity | 2 gal (7.6 L) |
| Rear Axle Fluid Capacity | 4.2 gal (16 L) |
| Turning Radius | 11.8 ft in (3570 mm) |
| Tire Size Front - 2wd / 4wd | 11L-15,8PR F3;12.5/80,12PR |
| Rear Tires Size 2wd/4wd | 16.9-24,8PR R4;19.5L-24,8PR R4 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | 4-speed helical cut gear, collar shift transmission synchronized in all gears with hydraulic reverser |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20.5 mph (33 km/h) |
| Max Speed Reverse | 20.5 mph (33 km/h) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 28 gal/min (106 L/min) |
| Relief Valve Pressure | 2900 psi (20000 kPa) |
