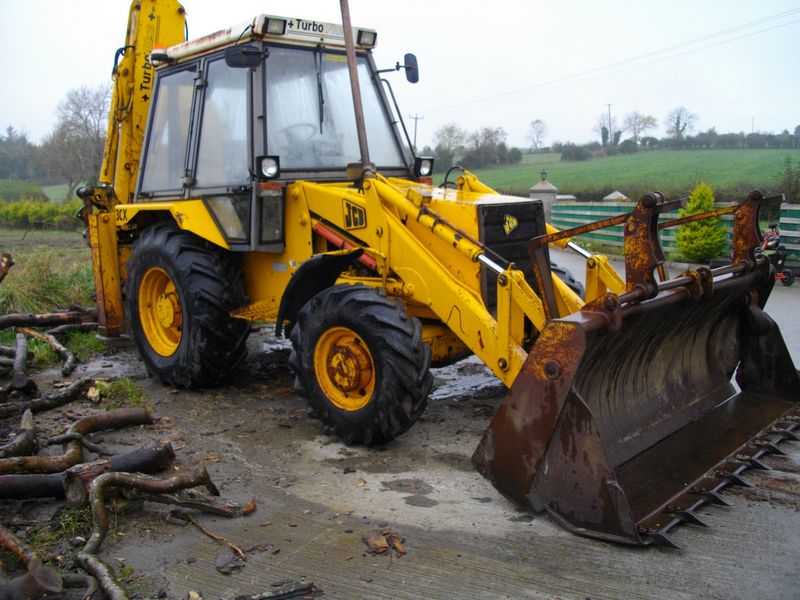

JCB 3CX2
Browse All JCB or Loader Backhoe Models
Contents:
Backhoe
| Reach From Swivel - Std | 1.22 ft in (370 mm) |
| Dig Depth - Std | 13.92 ft in (4240 mm) |
| Load At Max Lift - Std | 3492.13 lb (1584 kg) |
| Bucket Dig Force - Std | 14217.62 lb (6449 kg) |
Dimensions
| Transport Length | 18.44 ft in (5620 mm) |
| Transport Width | 7.71 ft in (2350 mm) |
| Transport Height | 11.85 ft in (3610 mm) |
Loader
| Clearance At Max Dump Height | 8.99 ft in (2740 mm) |
| Lift Capacity At Full Height | 7713.98 lb (3499 kg) |
| Bucket Capacity | 1.31 yd3 (1 m3) |
| Bucket Width | 92.52 in (2350 mm) |
| Bucket Breakout Force | _ - (61.7 kN) |
Engine
| Engine Make | 2257 |
| Engine Model | 444 |
| Gross Power | 82.7 hp (61.6 kw) |
Operational
| Fuel Capacity | 42.3 gal (160 L) |
Transmission
| Transmission Type | JCB 2WD |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.5 mph (36.1 km/h) |
| Max Speed Reverse | 22.5 mph (36.1 km/h) |
Hydraulic
| Pump Type | twin gear |
| Pump Flow Capacity | 32.8 gal/min (124 L/min) |
| Relief Valve Pressure | 3640.5 psi (25100 kPa) |
