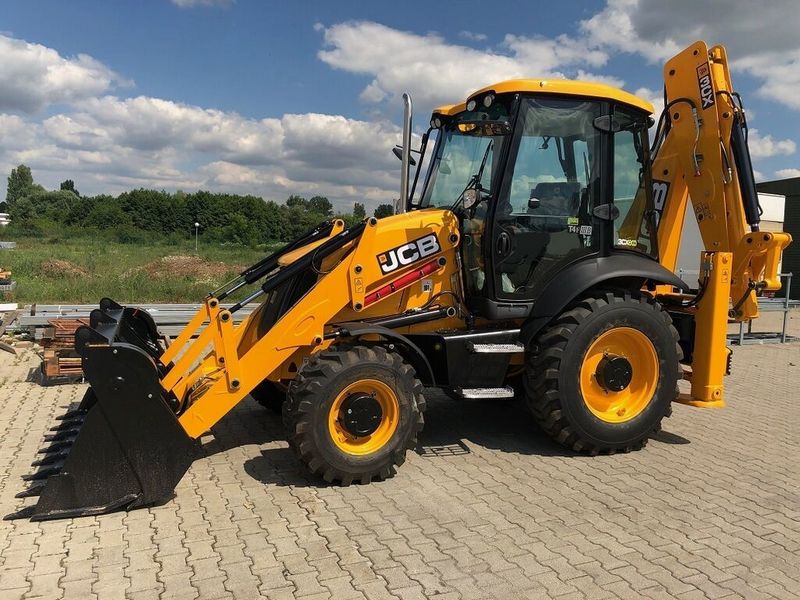

JCB 3CX Eco
Browse All JCB or Loader Backhoe Models
Contents:
Dimensions
| Ground Clearance | 1.22 ft in (370 mm) |
| Cab Roof Height | 9.95 ft in (3.03 m) |
| Width | 92.52 in (2350 mm) |
| Total Travel Length | 221.26 in (5620 mm) |
| Travel Clearance | 142.13 in (3.61 m) |
| Axle Centreline Distance | 7.12 ft in (2.17 m) |
| Kingpost Clearance | 1.71 ft in (0.52 m) |
| Rear Frame Width | 7.71 ft in (2.35 m) |
| Slew Centre To Rear Axle Center Distance | 4.47 ft in (1.36 m) |
| Stabiliser Feet Clearance | 1.22 ft in (0.37 m) |
| Steering Wheel Centre Height | 6.37 ft in (1.94 m) |
Loader
| Reach At Max Dump Height | 21.4 ft in (6520 mm) |
| Dig Depth | 0.18 in (4.33 mm) |
| Load Over Height | 10.5 ft in (3.2 m) |
Engine
| Emissions Certification | Tier IV |
| Rated Engine Speed | 1200 rpm |
| Net Power | 536.5 hp (400 kw) |
| Gross Power | 81 hp (60.5 kw) |
Operational
| Operating Weight | 17861.9 lb (8102 kg) |
| Hydraulic System Fluid Capacity | 43.6 gal (165 L) |
Transmission
| Max Speed | 4.7 mph (7.5 km/h) |
