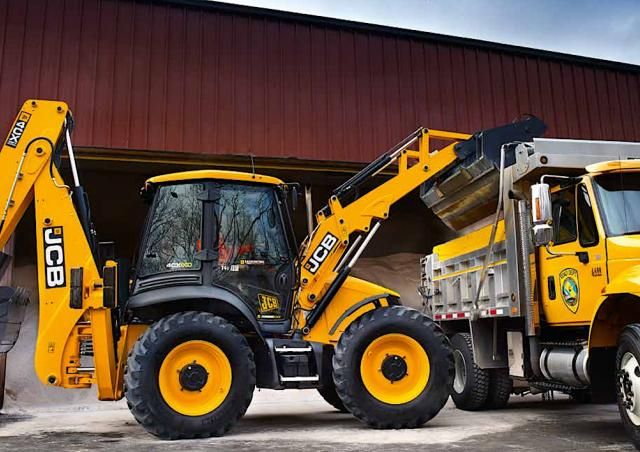

JCB 3CX 14FT (214)
Browse All JCB or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.16 ft in (3400 mm) |
| Reach From Swivel - Std | 17.85 ft in (5440 mm) |
| Dig Depth - Std | 14.6 ft in (4450 mm) |
| Reach At Load Height - Std | 5.52 ft in (1680 mm) |
| Load Height - Ext | 14.01 ft in (4270 mm) |
| Bucket Dig Force - Ext | 5261 lb (2386.35 kg) |
| Bucket Dig Force - Std | 5453 lb (2473.44 kg) |
| Dig Depth - Ext | 18.48 ft in (5630 mm) |
| Reach At Load Height - Ext | 9.09 ft in (2770 mm) |
| Load At Max Lift - Ext | 866 lb (392.82 kg) |
| Load At Max Lift - Std | 1669 lb (757.05 kg) |
| Reach From Swivel - Ext | 21.49 ft in (6550 mm) |
Dimensions
| Transport Length | 23.59 ft in (7190 mm) |
| Transport Width | 8.04 ft in (2450 mm) |
| Transport Height | 11.59 ft in (3530 mm) |
| Wheelbase | 7.26 ft in (2210 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Height To Top Of Suspended Cab | 9.42 ft in (2870 mm) |
Loader
| Clearance At Max Dump Height | 8.99 ft in (2740 mm) |
| Reach At Max Dump Height | 2.66 ft in (810 mm) |
| Dig Depth | 1.97 in (50 mm) |
| Bucket Breakout Force | 12638 lb (56.22 kN) |
| Bucket Width | 92.5 in (2349.5 mm) |
| Bucket Capacity | 1.4 yd3 (1.08 m3) |
| Lift Capacity At Full Height | 6750 lb (3061.75 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Engine Model | 444 |
| Gross Power | 92 hp (68.7 kw) |
| Net Power | 90.1 hp (67.2 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1300 rpm |
| Net Max Torque | 281.8 lb ft (382 Nm) |
| Aspiration | Turbo |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight 2wd | 15053 lb (6828 kg) |
| Fuel Capacity | 42.3 gal (160 L) |
| Operating Weight 4wd | 15439 lb (7003.1 kg) |
| Hydraulic System Fluid Capacity | 33.6 gal (127 L) |
| Oil System Fluid Capacity | 4 gal (15 L) |
| Cooling System Fluid Capacity | 6.1 gal (23 L) |
| Transmission Fluid Capacity | 4.3 gal (16 L) |
| Rear Axle Fluid Capacity | 4.3 gal (16 L) |
| Turning Radius | 13.3 ft in (4025 mm) |
| Tire Size Front - 2wd / 4wd | 11L-16 F3 12 PLY / 14-17.5 FWD 10 PLY |
| Rear Tires Size 2wd/4wd | 19.5L-24 R4 10 PLY / 19.5L-24 R4 10 PLY |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Transmission
| Transmission Type | JCB synchroshuttle |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.5 mph (36.3 km/h) |
| Max Speed Reverse | 22.5 mph (36.3 km/h) |
Hydraulic
| Pump Type | dual gear pumps |
| Pump Flow Capacity | 39.1 gal/min (148 L/min) |
| Relief Valve Pressure | 3300 psi (22752.7 kPa) |
