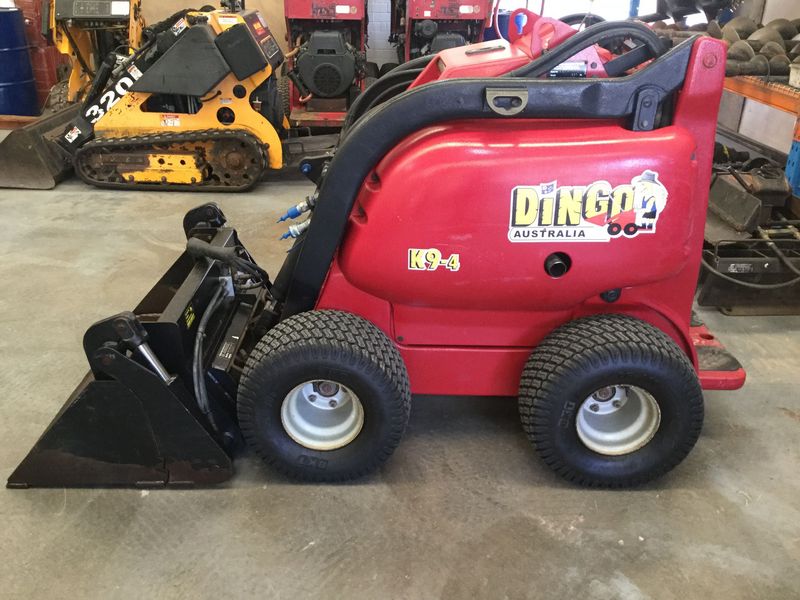

Dingo K9-4 Kohler
Browse All Dingo or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 3.94 ft in (1200 mm) |
| Reach From Swivel - Std | 10.5 ft in (3200 mm) |
| Dig Depth - Std | 7.22 ft in (2200 mm) |
Dimensions
| Transport Length | 9.85 ft in (3000 mm) |
| Transport Width | 3.45 ft in (1050 mm) |
| Transport Height | 4.93 ft in (1500 mm) |
Loader
| Clearance At Max Dump Height | 6.03 ft in (1835 mm) |
| Bucket Width | 41.34 in (1050 mm) |
| Bucket Capacity | 0.2 yd3 (0.15 m3) |
Engine
| Number Of Cylinders | 2 |
| Engine Make | 2355 |
| Gross Power | 25 hp (18.6 kw) |
| Power Measured @ | 3600 rpm |
| Displacement | 44.3 cu in (0.8 L) |
Operational
| Operating Weight 2wd | 2149.6 lb (975 kg) |
| Turning Radius | 8.7 ft in (2650 mm) |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 4.6 mph (7.4 km/h) |
| Max Speed Reverse | 4.6 mph (7.4 km/h) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 12.5 gal/min (47 L/min) |
| Relief Valve Pressure | 3408 psi (23497.4 kPa) |
