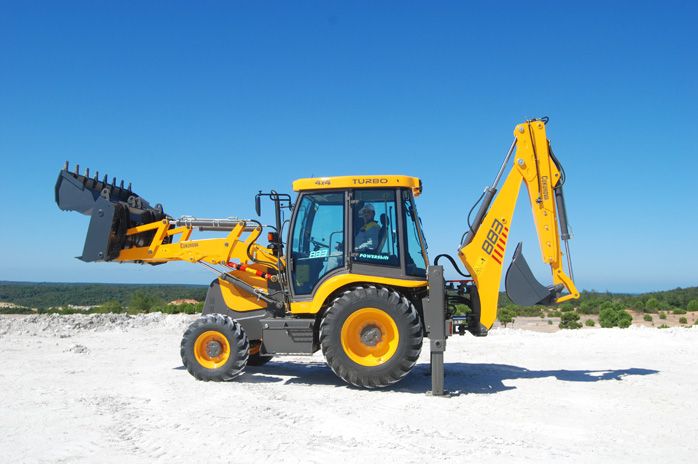

Cukurova 883
Browse All Cukurova or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 12.64 ft in (3850 mm) |
| Reach From Swivel - Std | 18.71 ft in (5700 mm) |
| Dig Depth - Std | 15.1 ft in (4600 mm) |
| Reach At Load Height - Std | 5.91 ft in (1800 mm) |
| Load Height - Ext | 15.42 ft in (4700 mm) |
| Dig Depth - Ext | 19.03 ft in (5800 mm) |
| Reach From Swivel - Ext | 22.31 ft in (6800 mm) |
| Reach At Load Height - Ext | 8.7 ft in (2650 mm) |
Dimensions
| Transport Length | 18.95 ft in (5775 mm) |
| Transport Width | 7.49 ft in (2280 mm) |
| Transport Height | 12.58 ft in (3832 mm) |
| Wheelbase | 7.14 ft in (2175 mm) |
| Ground Clearance | 1.32 ft in (400 mm) |
| Height To Top Of Suspended Cab | 9.39 ft in (2860 mm) |
Loader
| Clearance At Max Dump Height | 8.99 ft in (2740 mm) |
| Reach At Max Dump Height | 2.07 ft in (630 mm) |
| Dig Depth | 4.45 in (113 mm) |
| Bucket Breakout Force | 11595.65 lb (51.58 kN) |
| Bucket Width | 89.77 in (2280 mm) |
| Bucket Capacity | 1.44 yd3 (1.11 m3) |
| Lift Capacity At Full Height | 7215.73 lb (3273 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1104C-44T |
| Gross Power | 100 hp (74.6 kw) |
| Power Measured @ | 2200 rpm |
| Net Max Torque | 303.9 lb ft (412 Nm) |
| Aspiration | Turbocharged |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight 4wd | 17857.5 lb (8100 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 37 gal (140 L) |
| Oil System Fluid Capacity | 2.3 gal (8.4 L) |
| Cooling System Fluid Capacity | 6.7 gal (25 L) |
| Front Axle Fluid Capacity | 2.1 gal (7.8 L) |
| Rear Axle Fluid Capacity | 4.3 gal (16 L) |
| Turning Radius | 18.1 ft in (5500 mm) |
| Tire Size Front - 2wd / 4wd | 12.5 / 80-18 |
| Rear Tires Size 2wd/4wd | 16.9 - 28 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 75 amps |
Transmission
| Transmission Type | ZF Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
| Max Speed Reverse | 18.7 mph (30 km/h) |
Hydraulic
| Pump Type | Tandem gear |
| Pump Flow Capacity | 40.7 gal/min (154 L/min) |
| Relief Valve Pressure | 3190.9 psi (22000 kPa) |
