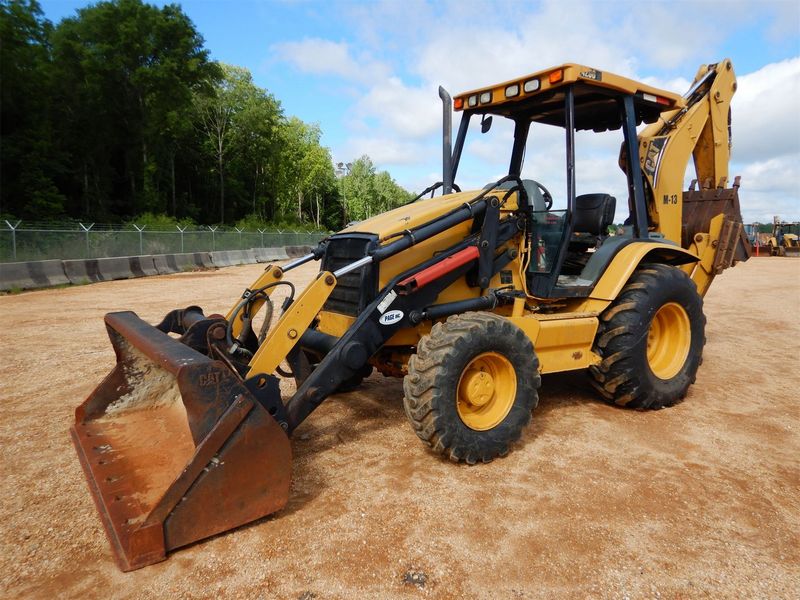

Caterpillar 420D IT
Browse All Caterpillar or Loader Backhoe Models
Contents:
Backhoe
| Load Height - Std | 11.86 ft in (3613 mm) |
| Reach From Swivel - Std | 18.54 ft in (5650 mm) |
| Dig Depth - Std | 14.41 ft in (4390 mm) |
| Reach At Load Height - Std | 2.83 ft in (862 mm) |
| Bucket Dig Force - Std | 14712 lb (6673.26 kg) |
| Bucket Dig Force - Ext | 14586 lb (6616.1 kg) |
| Reach From Swivel - Ext | 21.9 ft in (6675 mm) |
| Dig Depth - Ext | 18.08 ft in (5510 mm) |
| Reach At Load Height - Ext | 2.47 ft in (751 mm) |
| Load Height - Ext | 13.7 ft in (4175 mm) |
Dimensions
| Transport Length | 22.89 ft in (6974 mm) |
| Transport Width | 7.72 ft in (2352 mm) |
| Transport Height | 11.77 ft in (3585 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Ground Clearance | 0.98 ft in (297 mm) |
| Height To Top Of Suspended Cab | 9.09 ft in (2770 mm) |
Loader
| Clearance At Max Dump Height | 8.35 ft in (2544 mm) |
| Reach At Max Dump Height | 2.74 ft in (835 mm) |
| Dig Depth | 5.32 in (135 mm) |
| Lift Capacity At Full Height | 6384.59 lb (2896 kg) |
| Bucket Capacity | 1.26 yd3 (0.96 m3) |
| Bucket Width | 89.06 in (2262 mm) |
| Bucket Breakout Force | 10138.89 lb (45.1 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3054T |
| Net Power | 85 hp (63.4 kw) |
| Gross Power | 88 hp (65.7 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 244.1 cu in (4 L) |
Operational
| Fuel Capacity | 33.9 gal (128 L) |
| Operating Weight 4wd | 15763.1 lb (7150 kg) |
| Turning Radius | 17.6 ft in (5350 mm) |
| Tire Size Front - 2wd / 4wd | 11Lx16,12PR/12.5 / 80x18,10PR |
| Rear Tires Size 2wd/4wd | 19.5x24,10PR / 19.5L24,10PR |
Transmission
| Transmission Type | power shuttle |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20.4 mph (32.8 km/h) |
| Max Speed Reverse | 20.4 mph (32.8 km/h) |
Hydraulic
| Pump Type | LSPC, closed center |
| Pump Flow Capacity | 43.1 gal/min (163 L/min) |
| Relief Valve Pressure | 3300.2 psi (22754 kPa) |
