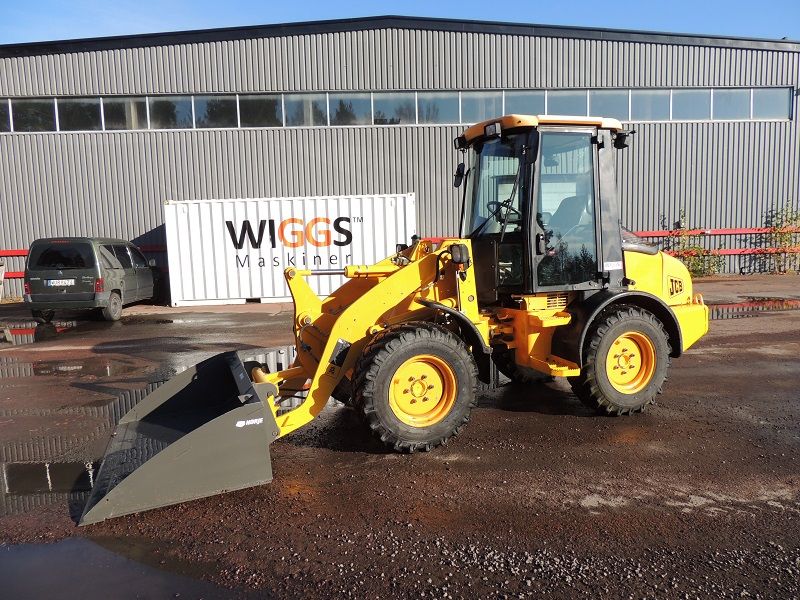

JCB 408ZX
Browse All JCB or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 16.41 ft in (5000 mm) |
| Width Over Tires | 5.75 ft in (1752.6 mm) |
| Height To Top Of Cab | 8.58 ft in (2615.19 mm) |
| Wheelbase | 6.57 ft in (2000 m) |
| Ground Clearance | 1.35 ft in (410 mm) |
| Hinge Pin Max Height | 10.31 ft in (3142 mm) |
| Dump Clearance At Max Lift | 8.26 ft in (2517 mm) |
| Max Lift Height | 9.92 ft in (3021 mm) |
| Fork Tine Length | 3.94 ft in (1200 mm) |
| Reach At Max Height And Dump | 2.01 ft in (612 mm) |
Engine
| Engine Make | 2257 |
| Engine Model | 1104C-44 |
| Gross Power | 75 hp (56 kw) |
| Net Power | 67 hp (50 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 223 lb ft (302.4 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 268.5 cu in (4.4 L) |
| Aspiration | Natural aspirated |
Operational
| Operating Weight | 10670.4 lb (4840 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Cooling System Fluid Capacity | 4.1 gal (15.5 L) |
| Engine Oil Capacity | 2.5 gal (9.4 L) |
| Transmission Fluid Capacity | 22.5 gal (85 L) |
| Front Diff Fluid Capacity | 2.6 gal (9.5 L) |
| Rear Diff Fluid Capacity | 2.8 gal (10.5 L) |
| Hydraulic System Fluid Capacity | 22.5 gal (85.2 L) |
| Turning Radius | 11.9 ft in (3605.8 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 75 amps |
| Rear Axle Oscillation | 9 degrees |
| Static Tipping Load - Bucket | 6810 lb (3089 kg) |
| Static Tipping Load - Forks | 4011 lb (1819.4 kg) |
| Tire Size | 12.5x20 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed Forward | 18.7 mph (30 km/h) |
| Max Speed Reverse | 18.7 mph (30 km/h) |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Setting | 3191 psi (22001.2 kPa) |
| Pump Flow Capacity | 17.5 gal/min (66 L/min) |
| Raise Time | 5 sec |
| Dump Time | 1 sec |
| Lower Time | 3.2 sec |
Bucket
| Bucket Capacity - Heaped | 1.1 yd3 (0.8 m3) |
| Bucket Capacity - Struck | 0.9 yd3 (0.7 m3) |
