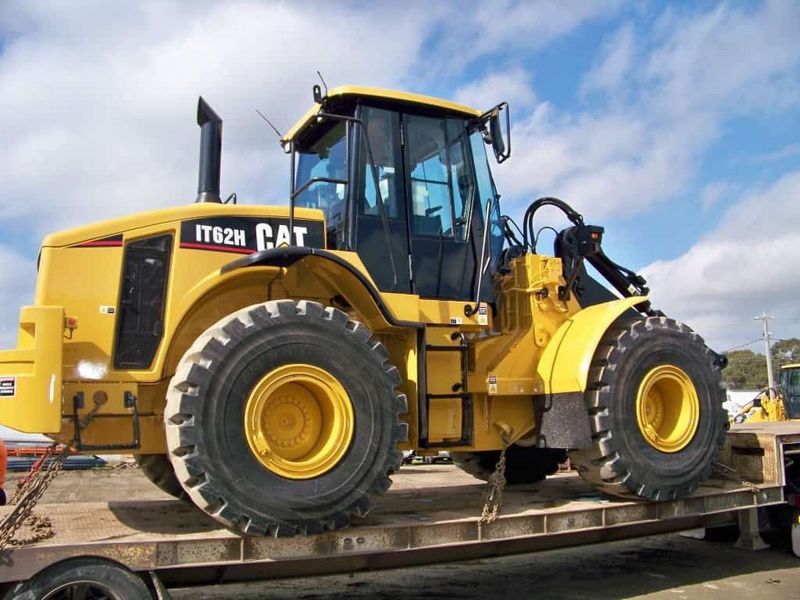

Caterpillar IT62H
Browse All Caterpillar or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 27.92 ft in (8498 mm) |
| Width Over Tires | 9.17 ft in (2784 mm) |
| Height To Top Of Cab | 11.33 ft in (3452 mm) |
| Wheelbase | 11 ft in (3350 m) |
| Ground Clearance | 1.35 ft in (411.48 mm) |
| Hinge Pin Max Height | 13.5 ft in (4123 mm) |
| Dump Clearance At Max Lift | 9.17 ft in (2785 mm) |
| Max Lift Height | 12.5 ft in (3817 mm) |
| Fork Tine Length | 5 ft in (1524 mm) |
| Hook Height At Max Lift - Standard | 20.43 ft in (6234 mm) |
| Hook Height At Max Lift - Extended | 24.92 ft in (7587 mm) |
| Hook Reach At Max Lift - Standard | 6.75 ft in (2068 mm) |
| Hook Reach At Max Lift - Extended | 9.58 ft in (2921 mm) |
| Hook Height At Maximum Lift - Retracted | 20.45 ft in (6.24 m) |
| Hook Height At Minimum Lift - Extended | 10.38 ft in (3.17 m) |
| Hook Height At Minimum Lift - Mid-Position | 8.33 ft in (2.54 m) |
| Hook Height At Minimum Lift - Retracted | 6.28 ft in (1.92 m) |
| Hook Height With Lift Arm Level | 6 ft in (1.83 m) |
| Hook Reach At Maximum Lift - Extended | 10.47 ft in (3.2 m) |
| Hook Reach At Maximum Lift - Mid-Position | 8.82 ft in (2.69 m) |
| Hook Reach At Maximum Lift - Retracted | 7.18 ft in (2.19 m) |
| Hook Reach At Minimum Lift - Extended | 10.47 ft in (3.2 m) |
| Hook Reach At Minimum Lift - Mid-Position | 8.82 ft in (2.69 m) |
| Hook Reach At Minimum Lift - Retracted | 7.18 ft in (2.19 m) |
| Hook Reach With Lift Arm Level - Extended | 18.24 ft in (5.56 m) |
| Hook Reach With Lift Arm Level - Mid-Position | 15.62 ft in (4.77 m) |
| Hook Reach With Lift Arm Level - Retracted | 13 ft in (3.97 m) |
| Length With Out Forks On Ground | 29.92 ft in (9116 mm) |
| B-Pin Height - Standard | 13.53 ft in (4.13 m) |
| Overall Length - With Fork Level On Ground | 29.91 ft in (9.12 m) |
| Overall Reach With Lift Arm And Fork Level | 6.39 ft in (1.95 m) |
| Rack Back - Carry | 51 degrees |
| Rack Back - Ground | 44 degrees |
| Reach At Max Height And Dump | 4 ft in (1227 mm) |
| Tine Height At Maximum Lift With Fork Level | 12.52 ft in (3.82 m) |
| Tine Height With Lift Arm And Fork Level | 5.76 ft in (1.76 m) |
| Wheel Base | 10.99 ft in (3.35 m) |
| Centerline Rear Axle To Edge Of Counterweight | 6.56 ft in (2 m) |
| Height - Top Of Rops | 11.33 ft in (3.46 m) |
| Centerline Of Rear Axle To Hitch | 66 in (1676.4 mm) |
| Height - Top Of Hood | 96.96 in (2462.79 mm) |
| Height - Top Of Exhaust Pipe | 132.6 in (3368.04 mm) |
| Hook Height At Maximum Lift - Extended | 24.89 ft in (7.59 m) |
| Hook Height At Maximum Lift - Mid-Position | 22.67 ft in (6.91 m) |
Engine
| Engine Make | 2236 |
| Engine Model | C7 ACERT |
| Gross Power | 230 hp (172 kw) |
| Net Power | 211 hp (158 kw) |
| Max Torque | 669 lb ft (907 Nm) |
| Displacement | 439 cu in (7.2 L) |
| Bore | 4.4 in (110 mm) |
| Stroke | 5 in (127 mm) |
| Net Power - Iso 9249 | 211 hp (157.4 kw) |
| Net Power - Sae J1349 | 209 hp (155.9 kw) |
| Net Power - 80/1269/Eec | 211 hp (157.4 kw) |
| Gross Power - Sae J1995 | 230 hp (171.6 kw) |
| Engine Model | Cat? C7 ACERT? |
| Flywheel Power | 211.9 hp (158 kw) |
| Peak Torque - 1,400 Rpm - Net | 669 lb ft (907.1 Nm) |
Operational
| Operating Weight | 42770 lb (19397 kg) |
| Fuel Capacity | 83 gal (314 L) |
| Cooling System Fluid Capacity | 11 gal (42 L) |
| Engine Oil Capacity | 7.9 gal (30 L) |
| Transmission Fluid Capacity | 9 gal (34 L) |
| Front Diff Fluid Capacity | 9.5 gal (36 L) |
| Rear Diff Fluid Capacity | 9.5 gal (36 L) |
| Hydraulic System Fluid Capacity | 29 gal (110 L) |
| Turning Radius | 22.1 ft in (6727 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 13 degrees |
| Static Tipping Load - Bucket | 29602 lb (13245 kg) |
| Static Tipping Load - Forks | 20667 lb (9373 kg) |
| Static Tipping Load - Material Handler | 16163 lb (7330 kg) |
| Tire Size | 23.5R25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed Forward | 23.6 mph (38 km/h) |
| Max Speed Reverse | 24.9 mph (40 km/h) |
| Forward - 1 | 4.3 mph (7 km/h) |
| Forward - 2 | 8.1 mph (13.1 km/h) |
| Forward - 3 | 14 mph (22.6 km/h) |
| Forward - 4 | 23.6 mph (38 km/h) |
| Reverse - 1 | 4.7 mph (7.6 km/h) |
| Reverse - 2 | 8.6 mph (13.9 km/h) |
| Reverse - 3 | 15.2 mph (24.5 km/h) |
| Reverse - 4 | 24.9 mph (40.1 km/h) |
Weights
| Operating Weight | 42770 lb (19400.2 kg) |
Tires
| Tires | Choose from a variety of tires to match your application. |
Buckets
| Maximum Bucket Capacity | 5.5 yd3 (4.3 m3) |
| Bucket Capacities | 3.25-4.25 m3 4.25-5.5 yd3 |
| Bucket Width | 9.5 ft in (2.9 m) |
| Capacity - Reference Bucket | 4.3 yd3 (3.3 m3) |
| Type - Reference Bucket | Material Handling |
| Breakout Force - Reference Bucket | 35775 lb (16227.3 kg) |
Hydraulic System
| Pump Type | Piston pump |
| Pump Flow Capacity | 71 gal/min (270 L/min) |
| Raise Time | 6 sec |
| Dump Time | 2.1 sec |
| Lower Time | 2.6 sec |
Bucket
| Breakout Force | 35775 lb (159.1 kN) |
Blade
| Width | 9.5 ft in (2885 mm) |
Bucket
| Bucket Capacity - Heaped | 4.3 yd3 (3.3 m3) |
| Bucket Capacity - Struck | 3.5 yd3 (2.7 m3) |
Axles
| Front | Fixed front |
| Rear | Oscillating +/- 13? |
| Maximum Single-Wheel Rise And Fall | 18.5 in (469.9 mm) |
Hydraulic System
| Hydraulic Cycle Time - Total | 10.7 s |
| Hydraulic Cycle Time - Lower, Empty, Float Down | 2.6 s |
| Hydraulic Cycle Time - Raise | 6 s |
| Pilot System - Pump Output | 71.33 gal/min |
| Hydraulic Cycle Time - Dump | 2.1 s |
| Steering System - Pump Type | Piston |
| Bucket/Work Tool System - Pump Output | 71 gal/min |
Brakes
| Brakes | Meets required standards. |
Operating Specifications
| Static Tipping Load - Full Turn | 25860.2 lb (11730 kg) |
| Dump Clearance | 9137.2 ft in (2785 m) |
| Breakout Force | 35775 lb (16227.3 kg) |
| Static Tipping Load - Full Turn - Bucket | 25865 lb (11732.2 kg) |
| Static Tipping Load - Full Turn - Forks | 17515.8 lb (7945 kg) |
Service Refill Capacities
| Cooling System | 11 gal (41.7 L) |
| Crankcase | 7.9 gal (30 L) |
| Hydraulic Tank | 29 gal (109.8 L) |
| Fuel Tank - Standard | 83 gal (314.2 L) |
| Transmission | 9 gal (34.1 L) |
| Differential - Final Drives - Front | 9.5 gal (36 L) |
| Differential - Final Drives - Rear | 9.5 gal (36 L) |
Cab
| Rops/Fops | Meets SAE and ISO standards. |
