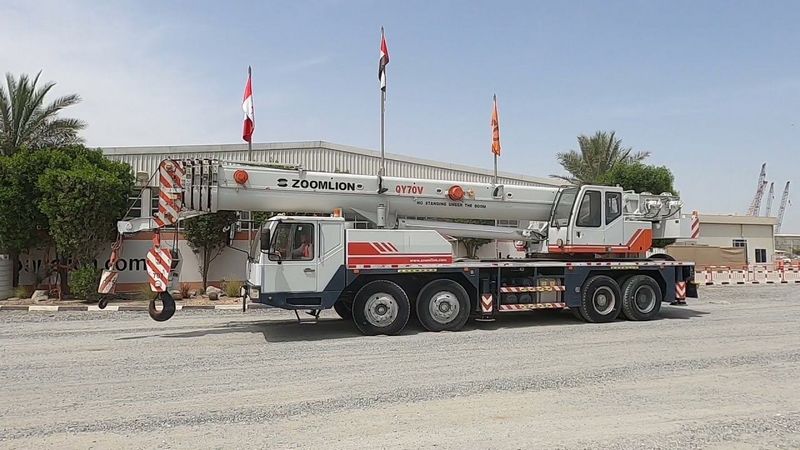

Zoomlion QY70V532
Browse All Zoomlion or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 40.03 ft in (12.2 m) |
| Max Height @ Max Raise Angle - No Jib | 145.02 ft in (44.2 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 154323.58 lb (70000 kg) |
Dimensions
| Transport Length | 46.26 ft in (14100 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 12.31 ft in (3750 mm) |
| Ground Clearance | 0.92 ft in (280 mm) |
| Width W/ Outriggers Extended | 24.94 ft in (7600 mm) |
| Carrier Length | 40.29 ft in (12280 mm) |
Operational
| Operating Weight | 99208.1 lb (45000 kg) |
Transmission
| Max Speed - Forward | 46.7 mph (75 km/h) |
