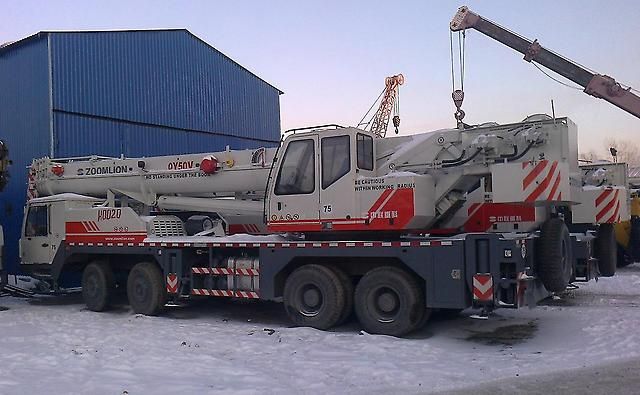

Zoomlion QY50V532
Browse All Zoomlion or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 38.06 ft in (11.6 m) |
| Max Height @ Max Raise Angle - No Jib | 138.13 ft in (42.1 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 104.99 ft in (32 m) |
| Max Elevating Angle | 80 degrees |
| Max Lift Capacity | 121254.24 lb (55000 kg) |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 43.64 ft in (13300 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 11.98 ft in (3650 mm) |
| Ground Clearance | 0.86 ft in (260 mm) |
| Width W/ Outriggers Extended | 22.64 ft in (6900 mm) |
| Carrier Length | 38.06 ft in (11600 mm) |
Carrier Engine
| Model | ZLJ5414 |
| Gross Power | 331.3 hp (247 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 922 lb ft (1250 Nm) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 89221.1 lb (40470 kg) |
| Number Of Axels | 4 |
