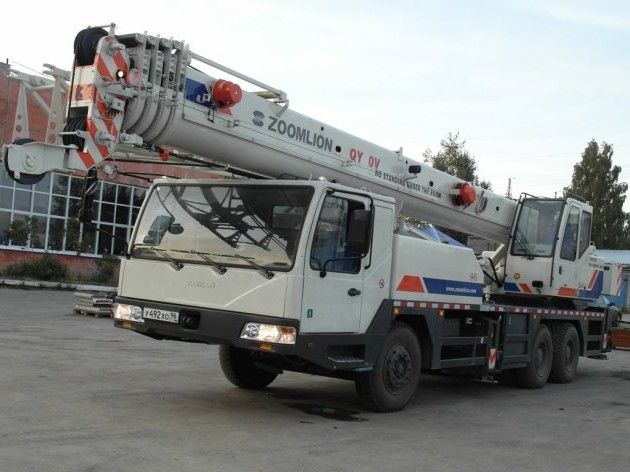

Zoomlion QY30V431
Browse All Zoomlion or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 37.08 ft in (11.3 m) |
| Max Height @ Max Raise Angle - No Jib | 113.52 ft in (34.6 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 91.87 ft in (28 m) |
| Max Elevating Angle | 80 degrees |
| Max Lift Capacity | 70547.92 lb (32000 kg) |
| Number Of Sections | 4+jib |
Dimensions
| Transport Length | 42.33 ft in (12900 mm) |
| Transport Width | 8.21 ft in (2500 mm) |
| Transport Height | 11.16 ft in (3400 mm) |
| Ground Clearance | 0.73 ft in (220 mm) |
| Width W/ Outriggers Extended | 20.02 ft in (6100 mm) |
| Carrier Length | 35.29 ft in (10755 mm) |
Carrier Engine
| Model | WP10.270 |
| Gross Power | 266.9 hp (199 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 811.4 lb ft (1100 Nm) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 64816 lb (29400 kg) |
| Number Of Axels | 3 |
